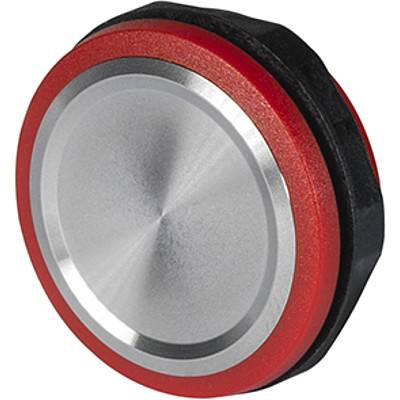

Schurter 3-126-805 Pushbutton 60 V DC 0.1 A (Ø) 30 mm IP67 1 pc(s)
Part number:
Item no:
Product type
Pushbutton
Contact type
1 maker
Switching voltage
60 V DC
Switching current (max.)
0.1 A
IP rating
IP67
Datasheet (PDF)
Highlights & Details
MSS 30 switch red
- 3-126-217: Connection cable with 3 wires for switches and buttons
Technical specifications
- Series MSS
- Function: 1x0-E
- Colour body: Red
- Type of actuator: Buttons
- Colour actuators: Silver
- Illumination: Not-illuminated
- Housing cut-out: Ø30,1mm
- Storage temperature range, min.: -40 °C.
- Storage temperature range, max. 85 °C.
- Material: Body: PMMA
- Material: Actuator: Stainless steel
- Thread M30 x 1.5
- Connector: Plug connection
- Actuating force, max. 3 N
- Electrical life: 20 x 10^6 operations
- Product type
Pushbutton
- Contact type
1 maker
- Switching voltage
60 V DC
- Max. switching capacity
1 W
- Switching current (max.)
0.1 A
- Min. temperature
-40 °C
- Max. temperature
85 °C
- (Ø)
30 mm
IP67
- Content
1 pc(s)
- Dim
(Ø) 30 mm
- RoHS-compliant
Yes
- Type
3-126-805
- Number of pins
1
Documents & Downloads
Datasheet
Datasheet 3738205 Schurter 3-126-805 Pushbutton 60 V DC 0.1 A (Ø) 30 mm IP67 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3738205 Schurter 3-126-805 Pushbutton 60 V DC 0.1 A (Ø) 30 mm IP67 1 pc(s)
Description
Schurter pressure switch MSS 1x0-E plug connection red 60VDC 0.1A 3N not illuminated
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
