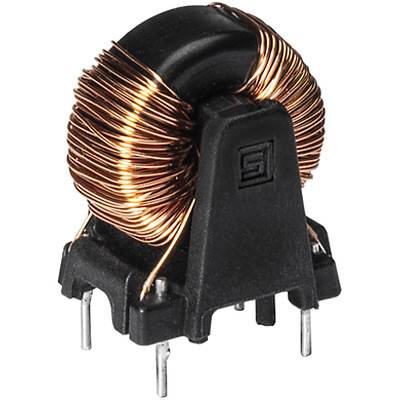

Schurter 3-137-420 Choke vertical Axial lead 1.9 mH 8 A 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
Choke
Type
Axial lead
Inductance (L)
1.9 mH
Max. temperature
100 °C
Datasheet (PDF)
Highlights & Details
DKCV-1 COMP.CHOKE 2PH 8A 1.9MH
- Very high inductance
- Compact size with a small footprint
- Open design for optimum cooling
- Optional customer-specific variants
Our service for you
Technical specifications
- Series DKCV-1
- Design:THT, Axial
- Mounting type: Vertical
- Climate category: 40/100/21
- Type: Current-compensated chokes
- Wire Ø 1 mm
- Inductance 1.9 mH
- Nominal resistance 4 mOhm
- Construction: Non-sealed
- Number of windings: 2
- Resonant frequency, min.: 24.7 MHz
- Packaging type
Piece
- Product type
Choke
- Features
vertical
- Type
Axial lead
- Inductance (L)
1.9 mH
- Resonance
24.7 MHz
- Nominal voltage
300 V AC
- Nominal current
8 A
- Width
16.8 mm
- Height
25 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
- IEC climate class
40/100/21
- Content
1 pc(s)
- Dim
(W x H) 16.8 mm x 25 mm
- RoHS-compliant
Yes
- Type
3-137-420
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-40 °C
- Certification marks
IEC 62368-1; UL 62368-1
Documents & Downloads
Datasheet
Datasheet 3738244 Schurter 3-137-420 Choke vertical Axial lead 1.9 mH 8 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738244 Schurter 3-137-420 Choke vertical Axial lead 1.9 mH 8 A 1 pc(s) Piece
Description
Schurter inductors Current-compensated chokes DKCV-1 8A 1.9mH vertical uncast
