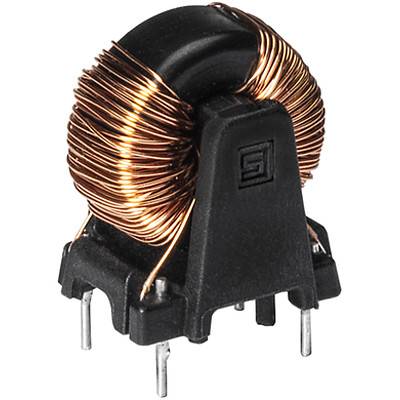

Schurter 3-137-421 Choke vertical THT 0.9 mH 10 A 1 pc(s)
Part number:
Item no:
Product type
Choke
Type
THT
Inductance (L)
0.9 mH
Max. temperature
100 °C
Features
vertical
Datasheet (PDF)
Highlights & Details
DKCV-1 COMP.CHOKE 2PH 10A 0.9MH
- Very high inductance
- Compact size with a small footprint
- Open design for optimum cooling
- Optional customer-specific variants
Our service for you
Technical specifications
- Series DKCV-1
- Design:THT, Axial
- Mounting type: Vertical
- Climate category: 40/100/21
- Type: Current-compensated chokes
- Wire Ø 1.25 mm
- Inductance 0.9 mH
- Nominal resistance 1.85 mOhm
- Construction: Non-sealed
- Number of windings: 2
- Resonant frequency, min.: 50.3 MHz
- Product type
Choke
- Features
vertical
- Type
THT
- Inductance (L)
0.9 mH
- Resonance
50.3 MHz
- Nominal voltage
300 V AC
- Nominal current
10 A
- Width
16.8 mm
- Height
25 mm
- (Ø)
1.25 mm
- Min. temperature
-40 °C
- Max. temperature
100 °C
- IEC climate class
40/100/21
- Content
1 pc(s)
- Dim
(Ø x H) 1.25 mm x 25 mm
- RoHS-compliant
Yes
- Type
3-137-421
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-40 °C
- Certification marks
IEC 62368-1; UL 62368-1
Documents & Downloads
Datasheet
Datasheet 3738245 Schurter 3-137-421 Choke vertical THT 0.9 mH 10 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3738245 Schurter 3-137-421 Choke vertical THT 0.9 mH 10 A 1 pc(s)
Description
Schurter inductors Current-compensated chokes DKCV-1 10A 0.9mH vertical uncast
