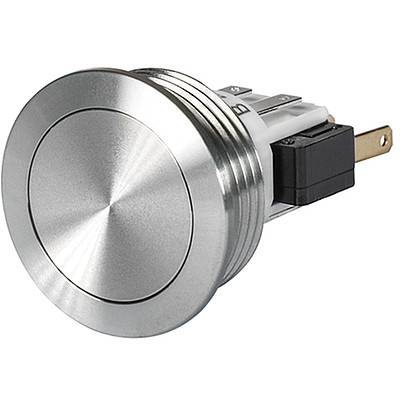

Schurter 3-145-589 Pushbutton 250 V AC 5 A momentary (Ø) 30 mm IP40 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
Pushbutton
Lighting type
None
Contact type
1 change-over
Connection
Jack connector
Datasheet (PDF)
Highlights & Details
Button MSMII 30 IP67 1xU 250V 3A unillum.
- Nut, O-ring and micro-switch are included in the delivery
Technical specifications
- Series MSM II.
- Function: 1xU
- Colour body: Silver
- Type of actuator: Buttons
- Colour actuators: Silver
- Illumination: Not-illuminated
- Re-reeling capable: No.
- Housing cut-out: Ø30,1mm
- Storage temperature range, min.: -40 °C.
- Storage temperature range, max. 85 °C.
- Mechanical life 15 x 10^5 operations
- Material: Body: Stainless steel
- Material: Actuator: Stainless steel
- Thread M30 x 1.5
- Connector: Plug connection
- Activation travel: 1 mm
- Actuating force, max. 4.5 N
- ALTERNATIVE PART NUMBER: MSMII-30-MONX05A-B1-BA0-A-0000000000-S0NCA-S0NCNF-0000-C.
- Packaging type
Piece
- Product type
Pushbutton
- Switch/button features
+ thread
- Functions
momentary
- Lighting type
None
- Contact type
1 change-over
- Material
Stainless steel
- Contact material
Stainless steel
- Connection
Jack connector
- Switching voltage
250 V AC
- Switching current (max.)
5 A
- Min. temperature
-30 °C
- Max. temperature
85 °C
- (Ø)
30 mm
- Recess diameter
30.1 mm
IP40
- Actuating force
4.5 N
- Content
1 pc(s)
- Dim
(Ø) 30 mm
- RoHS-compliant
Yes
- Type
3-145-589
- Number of pins
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3738646 Schurter 3-145-589 Pushbutton 250 V AC 5 A momentary (Ø) 30 mm IP40 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738646 Schurter 3-145-589 Pushbutton 250 V AC 5 A momentary (Ø) 30 mm IP40 1 pc(s) Piece
Description
Schurter Pushbutton MSM II 1xU plug connection silver 250VAC 5A 4.5N not illuminated
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
