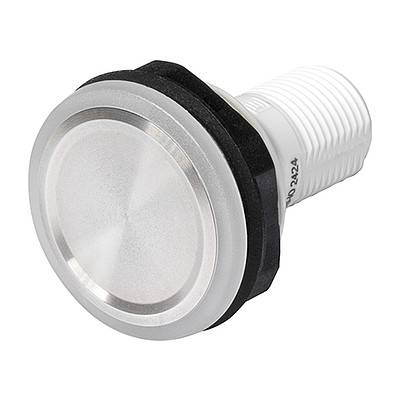

Schurter 3-150-067 Pushbutton 24 V DC Multi-colour (Ø) 25.5 mm IP67 1 pc(s) Single
Part number:
Item no:
Packaging type
Single
Product type
Pushbutton
Lighting type
Circular lighting
Contact type
1 maker
Connection
Jack connector
Datasheet (PDF)
Highlights & Details
MSS-IO switch 25.5mm illum.multi IP67
- IO-Link communication system
- M12 plug connection
Technical specifications
- MSS-IO series
- Function: 1x0-(E)
- Color body: Translucent
- Type of actuator: Buttons
- Colour actuators: Silver
- Lighting: Illuminated
- Lighting type: Ring
- Illumination color: Multi-color
- Housing cut-out: Ø22,1mm
- Storage temperature range, min.: -40 °C.
- Storage temperature range, max. 85 °C.
- Material: Body: PMMA
- Material: Actuator: Stainless steel
- Thread: M22x1
- Connector: Plug connection
- Actuating force, max. 3 N
- Electrical life: 20 x 10^6 operations
- Packaging type
Single
- Product type
Pushbutton
- Switch/button features
illuminable
- Lighting type
Circular lighting
- Colour
Multi-colour
- Contact type
1 maker
- Material
Stainless steel
- Connection
Jack connector
- Switching voltage
24 V DC
- Min. temperature
-40 °C
- Max. temperature
85 °C
- (Ø)
25.5 mm
- Recess diameter
22.1 mm
- Front panel cut-out
Ø22.1mm mm
IP67
- Actuating force
3 N
- Content
1 pc(s)
- Dim
(Ø) 25.5 mm
- RoHS-compliant
Yes
- Type
3-150-067
- Number of pins
4
Documents & Downloads
Datasheet
Datasheet 3738262 Schurter 3-150-067 Pushbutton 24 V DC Multi-colour (Ø) 25.5 mm IP67 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3738262 Schurter 3-150-067 Pushbutton 24 V DC Multi-colour (Ø) 25.5 mm IP67 1 pc(s) Single
Description
Schurter pushbutton MSS-IO 1x0-(E) plug connection translucent 24VDC 3N ring illuminated Multicolor
This text is machine translated.
This text is machine translated.
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
