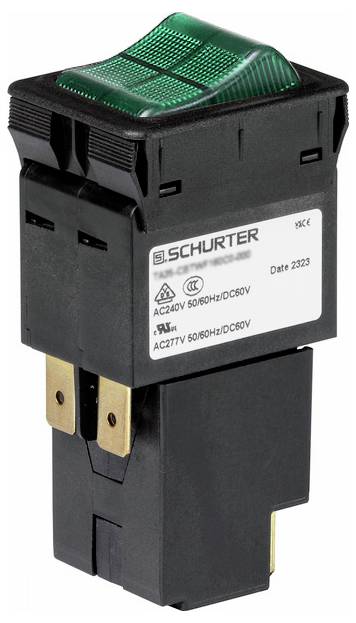

Schurter 3-150-707 RCCB Thermisch-magnetisch 240 V AC, 60 V DC 16 A 1 x Off/On IP40 1 pc(s)
Part number:
Item no:
Product type
RCCB
Casing/button colour
Black
Green (transparent)
Lighting type
incl. lighting
Colour
Green
Switch position
1 x Off/On
Datasheet (PDF)
Technical specifications
- Product type
RCCB
- Switch/button features
writable
illuminable
+ protective cover
- Casing/button colour
Black
Green (transparent)
- Lighting type
incl. lighting
- Colour
Green
- Bulb type
Glow lamp
- Switch position
1 x Off/On
- Print motif
OFF/ON
- Connection
Type C CEE 7/16 plug 6.3 mm
- Number of pins
2
- Switching voltage
240 V AC
60 V DC
- Switching current (max.)
16 A
- Min. temperature
-30 °C
- Max. temperature
60 °C
- Length
36 mm
- Width
32 mm
- Height
33.4 mm
- Recess depth
43.9 mm
- Front panel cut-out
34 x 26 mm
IP40
- Content
1 pc(s)
- Dim
(L x W x H) 36 x 32 x 33.4 mm
- RoHS-compliant
Yes
- Type
Thermisch-magnetisch
Documents & Downloads
Datasheet
Datasheet 3593515 Schurter 3-150-707 RCCB Thermisch-magnetisch 240 V AC, 60 V DC 16 A 1 x Off/On IP40 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3593515 Schurter 3-150-707 RCCB Thermisch-magnetisch 240 V AC, 60 V DC 16 A 1 x Off/On IP40 1 pc(s)
Description
Hints
Re switch position: content in parentheses describes the n/o and n/c contact constellation
