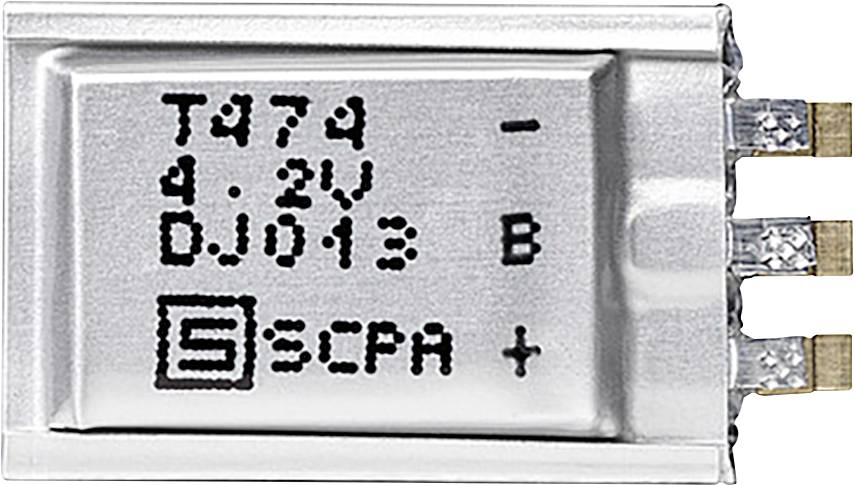

Schurter 3-153-407 Supercapacitor (SC) 220 mF (L x W x H) 24.9 x 14 x 2.2 mm 1 pc(s)
Part number:
Item no:
Product type
Supercapacitor (SC)
Capacity (elec.)
220 mF
Max. temperature
85 °C
Content
1 pc(s)
Type
SMD
Datasheet (PDF)
Highlights & Details
SCAPA super capacitor 4.20V 220mF
- Prismatic ultra-thin super capacitors
- Cell type: Double cell
- Ultra compact design
- High pulse output
- Excellent performance at low temperatures
- High power density
- Low ESR at high current capacity
- Very low self-discharge
Our service for you
Technical specifications
- Series SCPA
- TS22 type
- Applications: Sensors, portable small devices, small power supplies, devices with mobile energy generation, uninterrupted power supply
- SMD mounting type
- Application:low ESR
- Technology: Prismatic super capacitor
- Delivery form: Loose
- Capacity: #REF!
- Max. current 10 A.
- Equivalent Series Resistance (ESR): 300 mOhm
- Nominal voltage DC 4.2 V
- Product type
Supercapacitor (SC)
- Type
SMD
- Dim

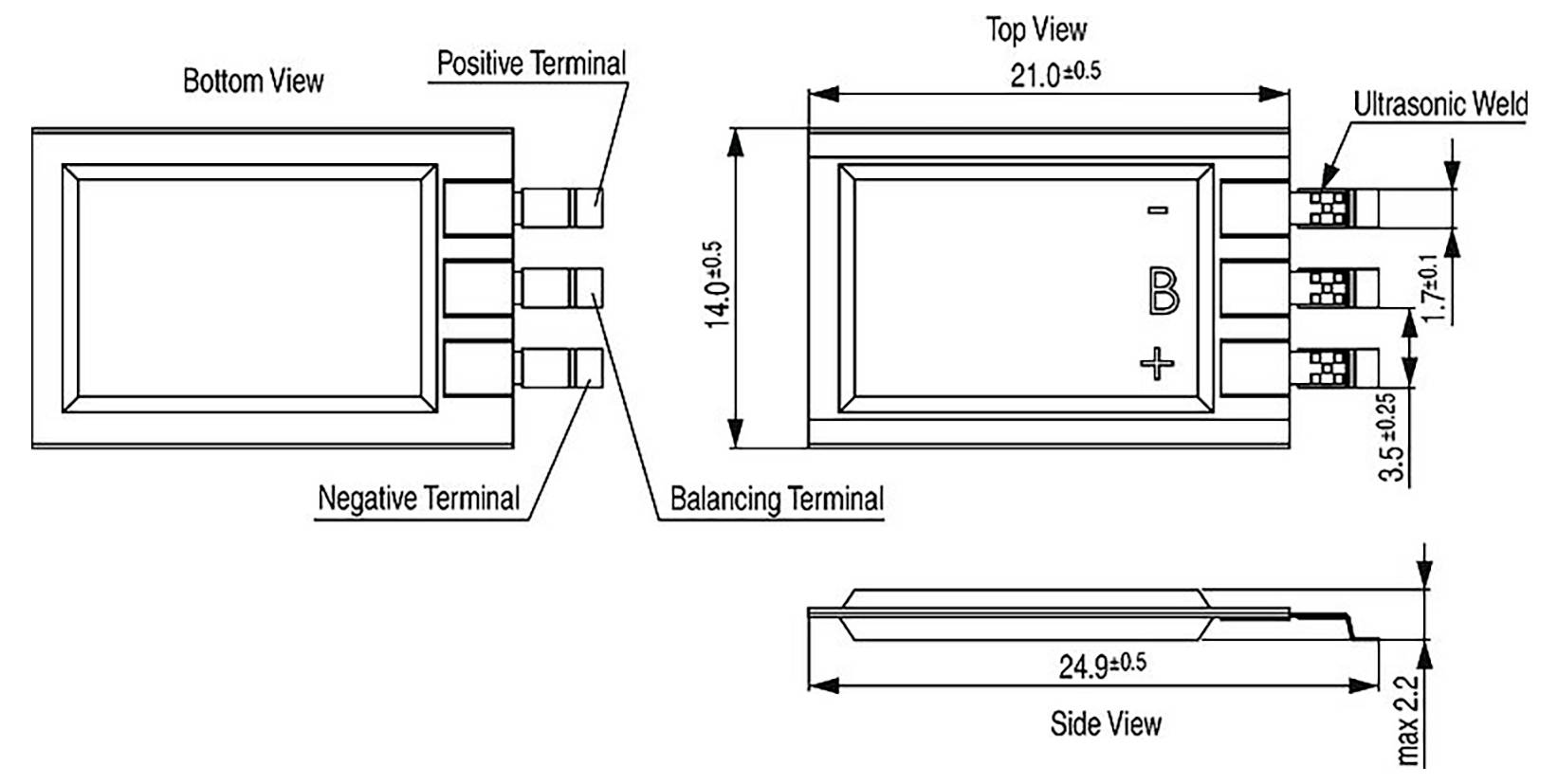

(L x W x H) 24.9 x 14 x 2.2 mm
- Capacity (elec.)
220 mF
- Length
24.9 mm
- Width
14 mm
- Height
2.2 mm
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3-153-407
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738265 Schurter 3-153-407 Supercapacitor (SC) 220 mF (L x W x H) 24.9 x 14 x 2.2 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3738265 Schurter 3-153-407 Supercapacitor (SC) 220 mF (L x W x H) 24.9 x 14 x 2.2 mm 1 pc(s)
Description
Schurter SMD super capacitor SCPA 4.2V 220mF 24.9mmx14mmx2.2mm -40°C...85°C low ESR
