Schurter 3-153-424 Supercapacitor (SC) 90 mF (L x W x H) 20 x 15 x 2.5 mm 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Supercapacitor (SC)
Capacity (elec.)
90 mF
Max. temperature
70 °C
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
SCPB super capacitor 5.00V 90mF
- Prismatic ultra-thin super capacitors
- Cell type: Single cell
- Ultra compact design
- High pulse output
- Excellent performance at low temperatures
- High power density
- Low ESR at high current capacity
- Very low self-discharge
Our service for you
Technical specifications
- Series: SCPB
- Design ZS21
- Applications: Sensors, portable small devices, small power supplies, devices with mobile energy generation, uninterrupted power supply
- SMD mounting type
- Application:low ESR
- Technology: Prismatic super capacitor
- Delivery form: Loose
- Capacity: #REF!
- Max. current 30 A.
- Equivalent Series Resistance (ESR): 110 mOhm
- Nominal voltage DC 5 V
- Packaging type
Bulk
- Product type
Supercapacitor (SC)
- Type
SMD
- Dim

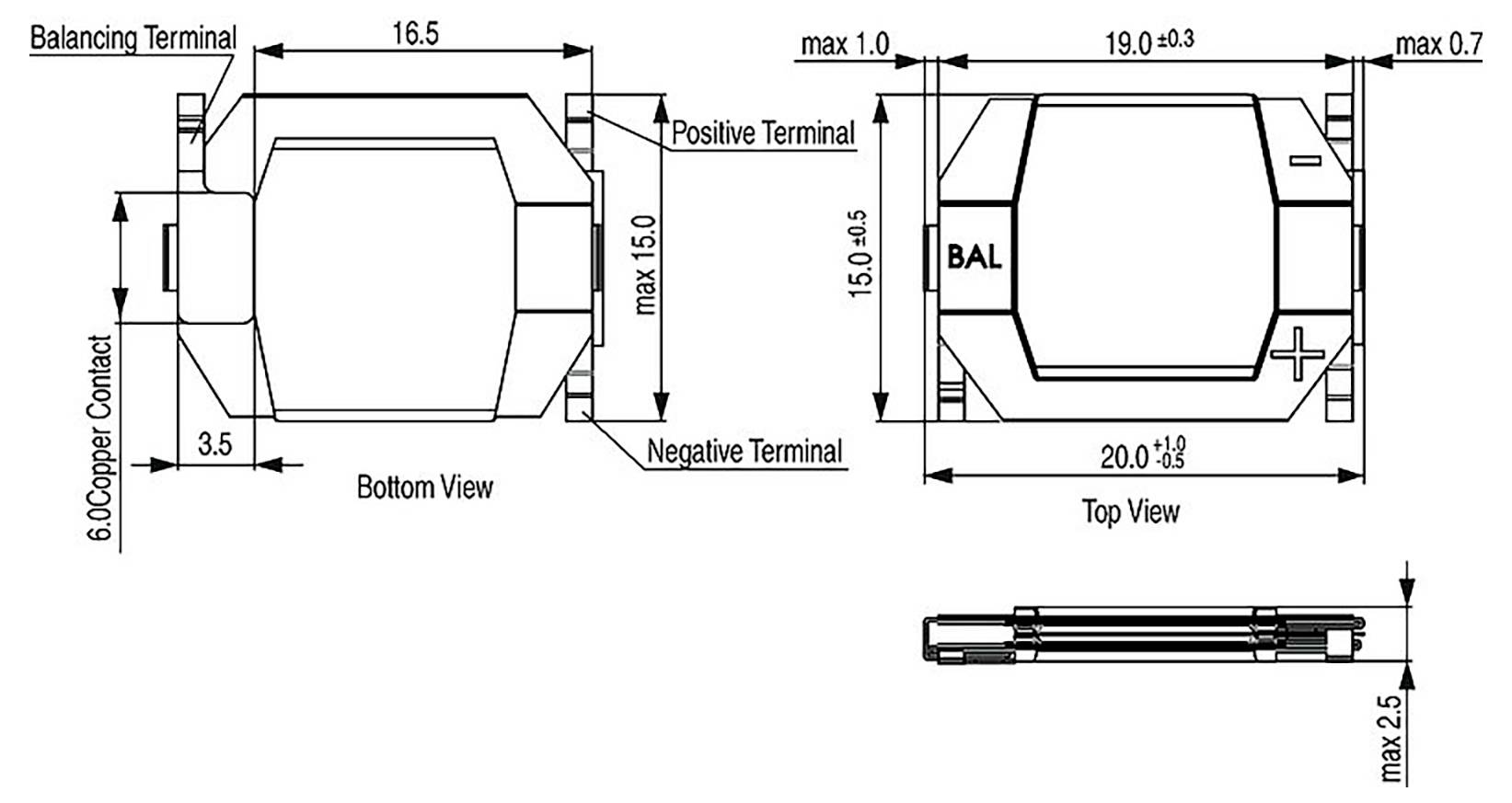

(L x W x H) 20 x 15 x 2.5 mm
- Capacity (elec.)
90 mF
- Length
20 mm
- Width
15 mm
- Height
2.5 mm
- Min. temperature
-40 °C
- Max. temperature
70 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3-153-424
- Operating temperature (max.)
70 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3738282 Schurter 3-153-424 Supercapacitor (SC) 90 mF (L x W x H) 20 x 15 x 2.5 mm 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3738282 Schurter 3-153-424 Supercapacitor (SC) 90 mF (L x W x H) 20 x 15 x 2.5 mm 1 pc(s) Bulk
Description
Schurter SMD super capacitor SCPB 5V 90mF 20mmx15mmx2.5mm 40°C...70°C low ESR
