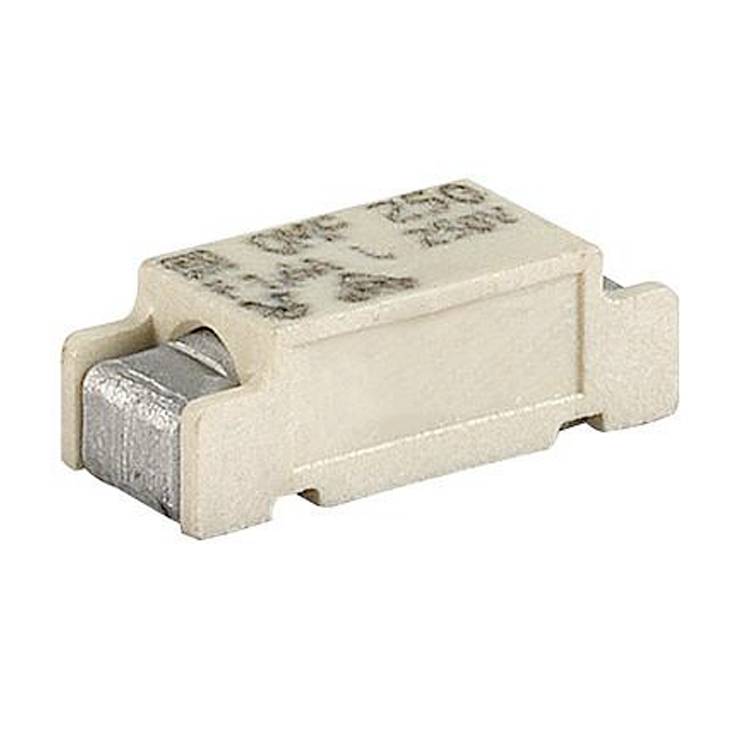

Schurter 3403.0020.11 3403.0020.11 SMD fuse 2.50 A 250 V DC Quick response -F- Content 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
250 V DC
Nominal current - rounded value
2.5 A
Release characteristics
Quick response -F-
Datasheet (PDF)
Technical specifications
- Series OMF250
- Dimensions: Length 11 mm
- Dimensions: Width 4.6 mm
- Dimensions: Height 3.9 mm
- Nominal voltage at 50/60Hz 250 V DC
- Nominal current 2.5 A
- Approvals CE, cULus
- Trigger time: Quick-action
- Contact material: Tin-plated copper alloy
- Housing material: Thermoplastic, UL 94V-0
- SMD connection type
- Material: Copper alloy, tin plated
- Weight: 0.36 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 125 °C.
- Climate category IEC 55/125/21
- Melting Integral: 2.6 A²/s.
- Rated breaking capacity 100 A.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 300 mV
- Loss rating, max. 670 mW
- Soldibility 245 °C / 30 s
- IEC 60127-4 standard
- Packaging type
Bulk
- Product type
SMD fuse
- Nominal voltage
250 V DC
- Nominal current
2.50 A
- Nominal current - rounded value
2.5 A
- Switch-off capacity
100 A
- Release characteristics
Quick response -F-
- Length
11.00 mm
- Certification marks
IEC 60127-4
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3403.0020.11
Documents & Downloads
Datasheet
Datasheet 3306258 Schurter 3403.0020.11 3403.0020.11 SMD fuse 2.50 A 250 V DC Quick response -F- Content 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3306258 Schurter 3403.0020.11 3403.0020.11 SMD fuse 2.50 A 250 V DC Quick response -F- Content 1 pc(s) Bulk
Description
SMD fuse
Quick-blow
Directly solderable on PCB
Loose goods
This text is machine translated.
Quick-blow
Directly solderable on PCB
Loose goods
