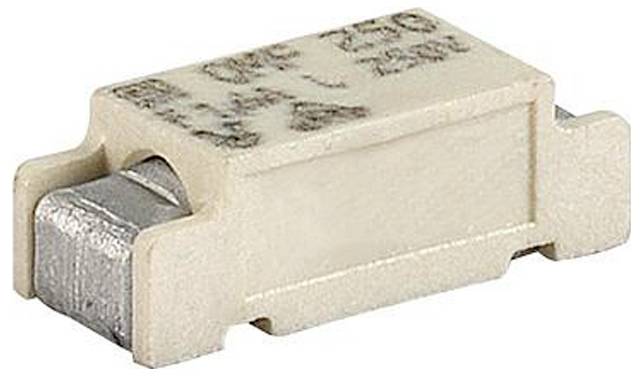

Schurter 3403.0022.24 SMD fuse SMD 4 A Quick response -F- 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD fuse
Nominal current - rounded value
4 A
Release characteristics
Quick response -F-
Type
SMD
Datasheet (PDF)
Highlights & Details
SMD-fuse 11X4,6 quick-acting F 4A
- SMD fuse
- Quick-blow
- Directly solderable on PCB
- Taped goods
Technical specifications
- Series OMF250
- Mounting: PCB mounting
- Trigger time: Quick-action

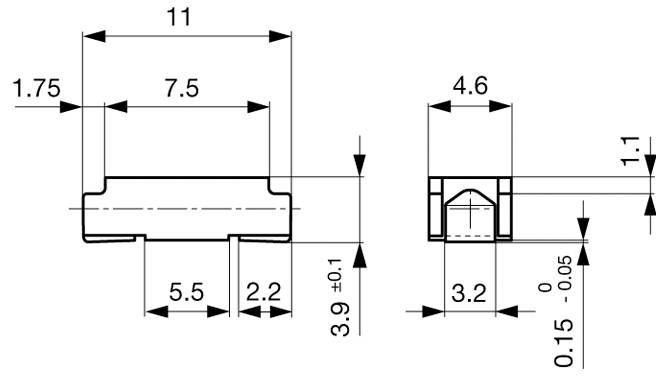

- 11 x 4.6 mm case
- Housing material: Thermoplastic (UL 94V-0)
- SMD connection type
- Climate category IEC 55/125/21
- Melting Integral: 8.6 A²/s.
- Rated breaking capacity 100 A.
- RATED VOLTAGE V/AC 250 V/AC
- RATED VOLTAGE V/DC 250 V/DC
- Voltage drop 300 mV
- Soldibility 245 °C / 30 s
- Packaging type
Tape
- Product type
SMD fuse
- Dim
(L x W x H) 11 x 4.6 x 3.9 mm
- Nominal current - rounded value
4 A
- Nominal current
4 A
- Release characteristics
Quick response -F-
- Type
SMD
- Material
Thermoplastic
- Length
11 mm
- Width
4.6 mm
- Height
3.9 mm
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3403.0022.24
- Power dissipation
950 mW
- Certification marks
IEC 60127-4
- Contact material
Copper alloy tin plated
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3738533 Schurter 3403.0022.24 SMD fuse SMD 4 A Quick response -F- 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3738533 Schurter 3403.0022.24 SMD fuse SMD 4 A Quick response -F- 1 pc(s) Tape
Description
Schurter SMD-fuse OMF250 quick-acting 100A 250VDC 4A 11X4,6MM
