Name: Schurter 3403.0163.11 3403.0163.11 SMD fuse 0.50 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
Brand: Schurter
SKU: 3306265

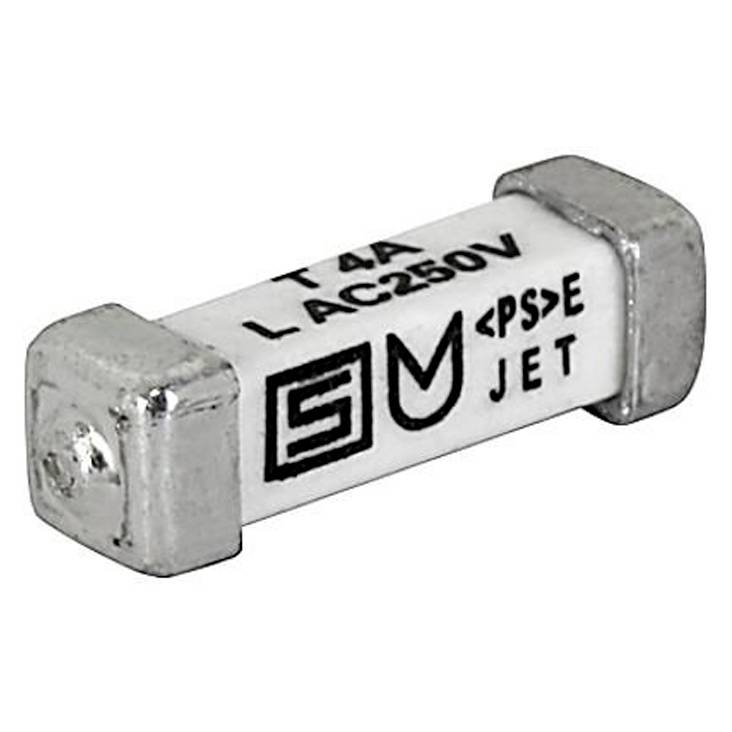

Image similar

Packaging type

Bulk

Product type

SMD fuse

Nominal voltage

125 V DC

Nominal current - rounded value

500 mA

Release characteristics

Time delay -T-

Datasheet (PDF)

Unavailable

Sales and shipping:

Technical specifications

Series UMT250
Dimensions: Length 10.1 mm
Dimensions: Width 3 mm
Dimensions: Height 3 mm
Nominal voltage at 50/60Hz 125 V DC
Nominal current: 0.5 A
Approvals CE, VDE, cULus, KTL, CQC
Trigger time: Slow-blow
Contact material: Tin-plated copper alloy
Applications: As primary protection on SMD circuit boards|suitable for pulsed continuous currents
Casing material: Ceramic
SMD connection type
Material: Copper alloy, tin plated
Weight: 0.23 g
Min. Operating temperature range -55 °C.
Operating temperature range, max. 125 °C.
Climate category IEC 55/125/21
Melting Integral: 0.54 A²/s.
Rated breaking capacity 200 A.
NOMINAL VOLTAGE V AC 250 V AC
Voltage drop 600 mV
Loss rating, max. 500 mW
Soldibility 245 °C / 30 s
IEC 60127-4 standard

Documents & Downloads

Datasheet 3306265 Schurter 3403.0163.11 3403.0163.11 SMD fuse 0.50 A 125 V DC Time delay -T- Content 1 pc(s) Bulk

User & Safety Instructions 3306265 Schurter 3403.0163.11 3403.0163.11 SMD fuse 0.50 A 125 V DC Time delay -T- Content 1 pc(s) Bulk

SMD fuse
slow-blow
High breaking capacity of 200 A @ 250 V AC (IEC)
UL approval for 277V AC and 250V DC
Loose goods

This text is machine translated.

SMD fuse
slow-blow
High breaking capacity of 200 A @ 250 V AC (IEC)
UL approval for 277V AC and 250V DC
Loose goods
