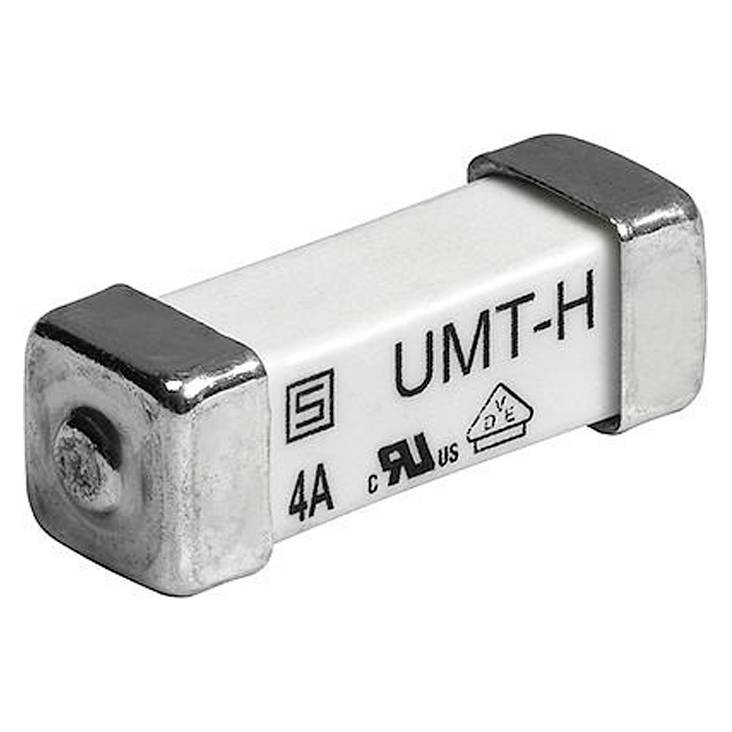

Schurter 3403.0284.11 3403.0284.11 SMD fuse 10.00 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
125 V DC
Nominal current - rounded value
10 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series UMT-H
- Dimensions: Length 15.4 mm
- Dimensions: Width 5.35 mm
- Dimensions: Height 5.35 mm
- Nominal voltage at 50/60Hz 125 V DC
- Nominal current 10 A
- Approvals CE, VDE, cULus
- Trigger time: Slow-blow
- Contact material: Silver-plated copper alloy
- Applications: Primary protection on SMD circuit boards|suitable for pulsed continuous currents
- Casing material: Ceramic
- SMD connection type
- Material: Copper alloy, silver-plated
- Weight: 1.42 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 125 °C.
- Climate category IEC 55/125/21
- Melting Integral: 180 A²/s.
- Rated breaking capacity 1,500 A.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 73 mV
- Loss rating, max. 1,220 mW
- Soldibility 245 °C / 30 s
- UL 248-14 standards
- Packaging type
Bulk
- Product type
SMD fuse
- Nominal voltage
125 V DC
- Nominal current
10.00 A
- Nominal current - rounded value
10 A
- Switch-off capacity
1.500 A
- Release characteristics
Time delay -T-
- Fuse layout
Ceramic tube
- Length
15.40 mm
- Certification marks
UL 248-14
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3403.0284.11
Documents & Downloads
Datasheet
Datasheet 3306283 Schurter 3403.0284.11 3403.0284.11 SMD fuse 10.00 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3306283 Schurter 3403.0284.11 3403.0284.11 SMD fuse 10.00 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
Description
SMD fuse
slow-blow
High breaking capacity up to 1500A
Loose goods
This text is machine translated.
slow-blow
High breaking capacity up to 1500A
Loose goods
This text is machine translated.
