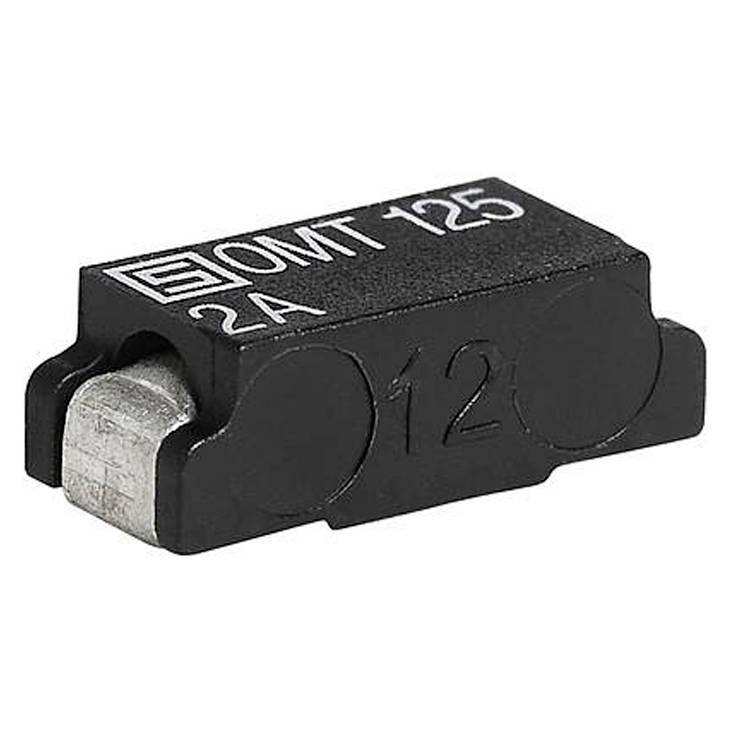

Schurter 3404.0116.11 3404.0116.11 SMD fuse 2.00 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
125 V DC
Nominal current - rounded value
2 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series: OMT125
- Dimensions: Length 7.4 mm
- Dimensions: Width 3.1 mm
- Dimensions: Height 2.6 mm
- Nominal voltage at 50/60Hz 125 V DC
- Nominal current 2 A
- Approvals CE, cULus
- Trigger time: Slow-blow
- Contact material: Tin-plated copper alloy
- Housing material: Thermoplastic, UL 94V-0
- SMD connection type
- Material: Copper alloy, tin plated
- Weight: 0.01 g
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Climate category IEC 40/85/21
- Melting Integral: 3.58 A²/s.
- Rated breaking capacity 100 A.
- NOMINAL VOLTAGE V AC 125 V AC
- Voltage drop 75 mV
- Loss rating, max. 150 mW
- Soldibility 245 °C / 30 s
- UL 248-14 standards
- Packaging type
Bulk
- Product type
SMD fuse
- Nominal voltage
125 V DC
- Nominal current
2.00 A
- Nominal current - rounded value
2 A
- Switch-off capacity
100 A
- Release characteristics
Time delay -T-
- Length
7.40 mm
- Certification marks
UL 248-14
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3404.0116.11
Documents & Downloads
Datasheet
Datasheet 3306290 Schurter 3404.0116.11 3404.0116.11 SMD fuse 2.00 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3306290 Schurter 3404.0116.11 3404.0116.11 SMD fuse 2.00 A 125 V DC Time delay -T- Content 1 pc(s) Bulk
Description
SMD fuse
slow-blow
Directly solderable on PCB
Loose goods
This text is machine translated.
slow-blow
Directly solderable on PCB
Loose goods
