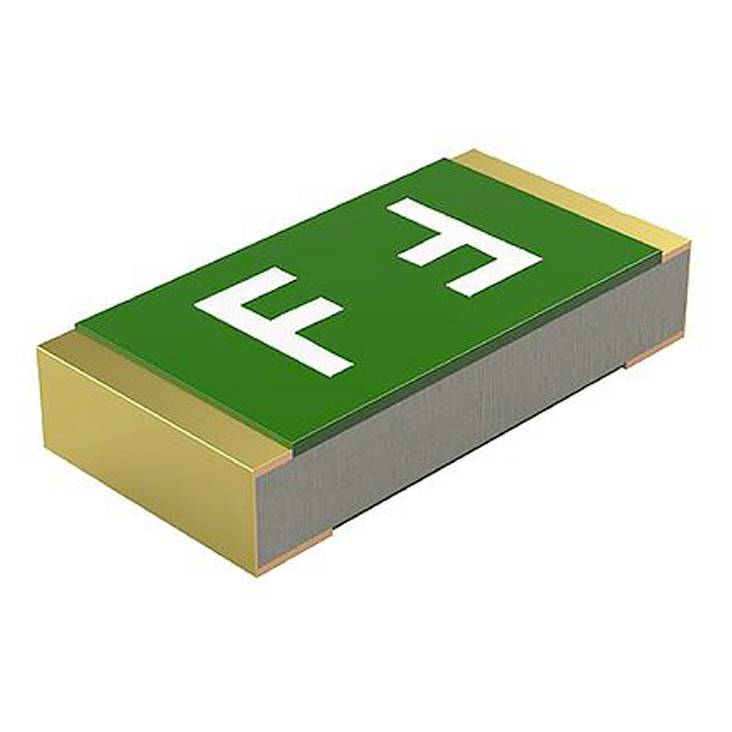

Image similar
Schurter 3412.0121.22 3412.0121.22 SMD fuse 3.00 A 32 V DC Very quick acting -FF- Content 1 pc(s) Tape
EAN:
Part number:
Item no:
Packaging type
Tape
Product type
SMD fuse
Nominal voltage
32 V DC
Nominal current - rounded value
3 A
Release characteristics
Very quick acting -FF-
Datasheet (PDF)
Technical specifications
- Series USF0603
- Dimensions: Length 1.6 mm
- Dimensions: Width 0.8 mm
- Dimensions: Height 0.6 mm
- Nominal voltage at 50/60Hz 32 V DC
- Nominal current 3 A
- Approvals CE, cULus
- Design 0603
- Trigger time: Super-quick-acting
- Contact material: Nickel-plated copper
- Applications: Secondary protection DC and AC|Circuits without inrush current peaks|Semiconductor protection
- Casing material: Fibre-reinforced plastic, UL 94V-0
- SMD connection type
- Material: Copper, nickel-plated
- Weight: 0.0016 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 90 °C.
- Climate category IEC 55/90/21
- Melting Integral: 0.32 A²/s.
- Rated breaking capacity 50 A.
- NOMINAL VOLTAGE V AC 32 V AC
- Voltage drop 60 mV
- Soldibility 245 °C / 30 s
- STANDARDS: UL 248-14; IEC/UL 62368-1
- Packaging type
Tape
- Product type
SMD fuse
- Nominal voltage
32 V DC
- Nominal current
3.00 A
- Nominal current - rounded value
3 A
- Switch-off capacity
50 A
- Release characteristics
Very quick acting -FF-
- Length
1.60 mm
- Certification marks
UL 248-14, IEC / UL 62368-1
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3412.0121.22
Documents & Downloads
Datasheet
Datasheet 3306300 Schurter 3412.0121.22 3412.0121.22 SMD fuse 3.00 A 32 V DC Very quick acting -FF- Content 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3306300 Schurter 3412.0121.22 3412.0121.22 SMD fuse 3.00 A 32 V DC Very quick acting -FF- Content 1 pc(s) Tape
Description
SMD fuse
Super-quick-acting FF
UL characteristics
Deep melt integral, quick release
Impermeable casting compound
Taped goods
This text is machine translated.
Super-quick-acting FF
UL characteristics
Deep melt integral, quick release
Impermeable casting compound
Taped goods
This text is machine translated.
