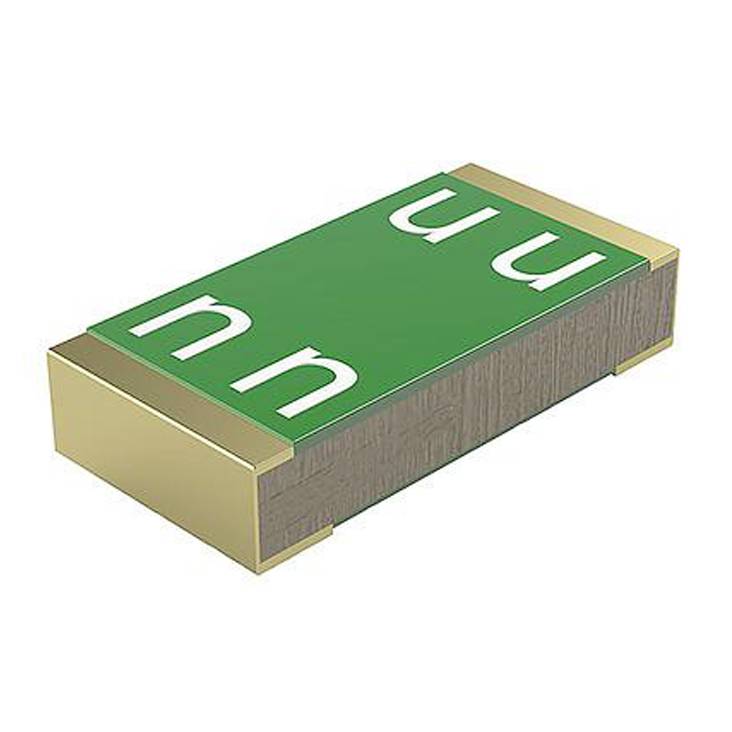

Image similar
Schurter 3413.0331.22 3413.0331.22 SMD fuse 20.00 A 63 V DC Time delay -T- Content 1 pc(s) Bulk
EAN:
Part number:
Item no:
Packaging type
Bulk
Product type
SMD fuse
Nominal voltage
63 V DC
Nominal current - rounded value
20 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series ---UST1206
- Dimensions: Length 3.2 mm
- Dimensions: Width 1.6 mm
- Dimensions: Height 0.6 mm
- Nominal voltage at 50/60Hz 63 V DC
- Nominal current 20 A
- Approvals CE, cULus
- Design: ---1206
- Trip time: -- slow-blow
- Contact material: ---copper nickel-plated
- Applications: ---Secondary protection DC and AC|Circuits with inrush current peaks|LCD Backlight DC-AC Converter
- Housing material: -- plastic, UL 94V-0
- Connection type: ---SMD
- Weight: 0.006 g
- Min. Operating temperature range -55 °C.
- Operating temperature range, max. 90 °C.
- Climate category IEC 55/90/21
- Melting Integral: 110 A²/s.
- Rated breaking capacity 100 A.
- NOMINAL VOLTAGE V AC 32 V AC
- Voltage drop 53 mV
- Soldibility 245 °C / 30 s
- UL 248-14 standards
- Packaging type
Bulk
- Product type
SMD fuse
- Nominal voltage
63 V DC
- Nominal current
20.00 A
- Nominal current - rounded value
20 A
- Switch-off capacity
100 A
- Release characteristics
Time delay -T-
- Length
3.20 mm
- Certification marks
UL 248-14
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
3413.0331.22
Documents & Downloads
Datasheet
Datasheet 3306316 Schurter 3413.0331.22 3413.0331.22 SMD fuse 20.00 A 63 V DC Time delay -T- Content 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3306316 Schurter 3413.0331.22 3413.0331.22 SMD fuse 20.00 A 63 V DC Time delay -T- Content 1 pc(s) Bulk
Description
-<--p>SMD fuse
slow-blow
• Breaking capacity: 100...750A
Directly solderable on PCB
UL characteristics
Fibre-reinforced plastic, UL 94V-0
High melting integral values
High nominal currents up to 25A
Impermeable casting compound
Loose goods
