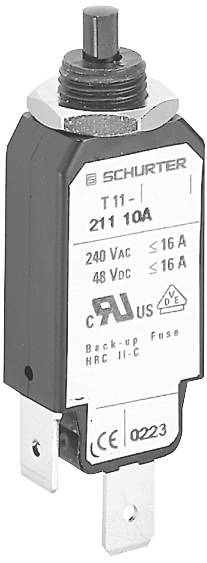

Image similar
Image similar
Schurter 4400.0050 4400.0050 RCCB 1 pc(s)
EAN:
Part number:
Item no:
Product type
RCCB
Type
6 A
Connection
Type C CEE 7/16 plug 0.8 mm
Min. temperature
-5 °C
Max. temperature
60 °C
Datasheet (PDF)
Technical specifications
- Series T11-211
- Dimensions: Length 19 mm
- Dimensions: Width 11 mm
- Dimensions: Height 50.2 mm
- Nominal current 6 A.
- Approvals: CULus, VDE, CE
- Mounting: Front panel mounting
- Mounting: Threaded collar mounting
- Trigger type: Positive release
- Applications: Power tools, household appliances, mains and chargers, industrial applications, etc.
- Connection type: Spade connector 6.3x0.8 mm
- Weight: 10 g
- Min. Operating temperature range -5 °C.
- Operating temperature range, max. 60 °C.
- Service life, type: 500 circuits
- Tightening torque 0.6 Nm
- Shock resistance 100 g
- Switching capacity 8 x Ismaller>than/sub Nsmaller than/sub>
- Limited switching capacity 2,000 A.
- Voltage resistance 1,500 V
- NOMINAL VOLTAGE V AC 240 V AC
- NOMINAL VOLTAGE V DC 48 V DC
- Insulation resistance 100 MOhm
- Hole diameter 9.6 mm
- IEC 60529 standard
- Insulation class IP40
- Product type
RCCB
- Type
6 A
- Connection
Type C CEE 7/16 plug 0.8 mm
- Min. temperature
-5 °C
- Max. temperature
60 °C
IP40
- Length
19.00 mm
- Width
11.00 mm
- Height
50.20 mm
- Durability
500 circuits
- Content
1 pc(s)
- Type
4400.0050
- Dim
(L x W x H) 19.00 x 11.00 x 50.20 mm
- RoHS-compliant
Yes
- Certification marks
IEC 60529
- Weight
10.00 g
Documents & Downloads
Datasheet
Datasheet 3156967 Schurter 4400.0050 4400.0050 RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156967 Schurter 4400.0050 4400.0050 RCCB 1 pc(s)
Description
• Thermal single-pole device protection switch
• Ideal replacement for fuse holders with fuse block, especially for higher nominal currents
• No replacement fuse necessary, can be reset quickly
• Insensitive to switch-on tips
• Thread neck mounting 3/8–27UNS–2A, 6mm length
• Spade connector 6.3x0.8 mm
This text is machine translated.
• Ideal replacement for fuse holders with fuse block, especially for higher nominal currents
• No replacement fuse necessary, can be reset quickly
• Insensitive to switch-on tips
• Thread neck mounting 3/8–27UNS–2A, 6mm length
• Spade connector 6.3x0.8 mm
