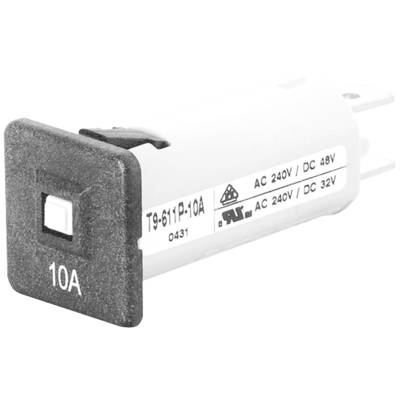

Image similar

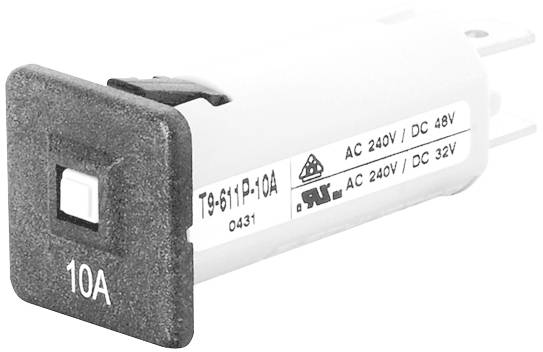

Image similar
Schurter 4404.0007 4404.0007 RCCB 1 pc(s)
EAN:
Part number:
Item no:
Product type
RCCB
Type
5 A
Connection
Type C CEE 7/16 plug 0.8 mm
Min. temperature
-5 °C
Max. temperature
60 °C
Datasheet (PDF)
Technical specifications
- Series T9-611
- Dimensions: Length 19 mm
- Dimensions: Width 19 mm
- Dimensions: Height 47.4 mm
- Nominal current 5 A
- Approvals: CULus,VDE,CCC,CE
- Size: In fuse holder format
- Mounting: Front panel mounting
- Snap-in fastening
- Trigger type: Conditional release
- Applications: Suitable for power supplies, uninterrupted power supplies, power tools, industrial applications, HVAC, Household appliances etc.
- Connection type: Spade connector 6.3x0.8 mm
- Board thickness, min. 0.8 mm
- Board thickness, max. 2 mm
- Min. Operating temperature range -5 °C.
- Operating temperature range, max. 60 °C.
- Service life, type: 2,500 circuits
- Switching capacity 8 x Ismaller>than/sub Nsmaller than/sub>
- Limited switching capacity 2,000 A.
- Voltage resistance 1,500 V
- NOMINAL VOLTAGE V AC 240 V AC
- NOMINAL VOLTAGE V DC 48 V DC
- Insulation resistance 1,000 MOhm
- Hole diameter 16 mm
- Standards IEC/UL 62368-1
- Insulation class IP40
- Product type
RCCB
- Type
5 A
- Connection
Type C CEE 7/16 plug 0.8 mm
- Min. temperature
-5 °C
- Max. temperature
60 °C
IP40
- Length
19.00 mm
- Width
19.00 mm
- Height
47.40 mm
- Durability
2,500 circuits
- Content
1 pc(s)
- Type
4404.0007
- Dim
(L x W x H) 19.00 x 19.00 x 47.40 mm
- RoHS-compliant
Yes
- Certification marks
IEC / UL 62368-1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3156976 Schurter 4404.0007 4404.0007 RCCB 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156976 Schurter 4404.0007 4404.0007 RCCB 1 pc(s)
Description
• Thermal single-pole device protection switch
• Ideal replacement for fuse holders with fuse block, especially for higher nominal currents
• No replacement fuse necessary, can be reset quickly
• Insensitive to switch-on tips
• Snap-in mounting for front panel thickness 0.8...2.0mm
• Spade connector 6.3x0.8 mm
This text is machine translated.
• Ideal replacement for fuse holders with fuse block, especially for higher nominal currents
• No replacement fuse necessary, can be reset quickly
• Insensitive to switch-on tips
• Snap-in mounting for front panel thickness 0.8...2.0mm
• Spade connector 6.3x0.8 mm
