Schurter 5200.0623.1 EMI filter 250 V 6 A 0.7 mH (L x W x H) 43.7 x 44 x 34 mm 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
EMI filter
Connection
Type C CEE 7/16 plug 6.3 mm
Inductance (L)
0.7 mH
Nominal voltage
250 V
Datasheet (PDF)
Highlights & Details

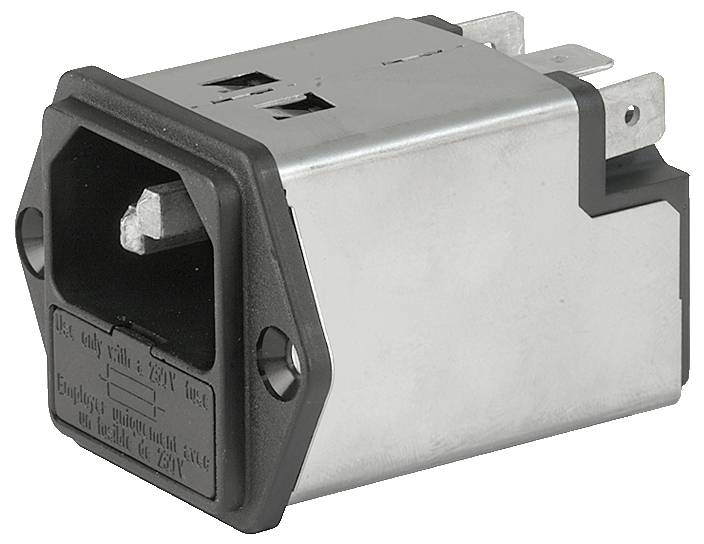

Line filter IEC fuse 5200 6A screw
- Filter in metal casing with integrated cold-device plug and 1-pin fuse holder and spare fuse compartment
- Fuse holder for 5x20mm fuses
- With 6.3mm spade connector
Technical specifications
- Series 5200
- Shock resistance 47 nF
- Contact resistance, max. 2.2 nF
- Mounting type: Panel mounting
- Dielectric strength 2NO, conductor/earth 2.7 kV DC
- Dielectric strength 2NO, conductor/conductor 1.7 kV DC
- Climate category HPF (25/085/21)
- Protection: front IP40
- Packaging type
Piece
- Product type
EMI filter
- Connection
Type C CEE 7/16 plug 6.3 mm
- Inductance (L)
0.7 mH
- Nominal voltage
250 V
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Leakage current
0.5 mA
- Material
Metal
- Length
43.7 mm
- Width
44 mm
- Height
34 mm
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Certification marks
IEC 60320-1; IEC 60939-2; IEC 60127-6; UL 60320-1; UL 60939-3; CSA C22.2 No. 60320-1; CSA C22.2 No. 8; UL 62368-1; IEC 62368-1; IEC 60335-1
- Manufacturer part #
5200.0623.1
- Type
5200.0623.1
- Content
1 pc(s)
- Dim
(L x W x H) 43.7 x 44 x 34 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3738614 Schurter 5200.0623.1 EMI filter 250 V 6 A 0.7 mH (L x W x H) 43.7 x 44 x 34 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3738614 Schurter 5200.0623.1 EMI filter 250 V 6 A 0.7 mH (L x W x H) 43.7 x 44 x 34 mm 1 pc(s) Piece
Description
Schurter IEC-filter 5200 panel mounting 250V 6A IP40
