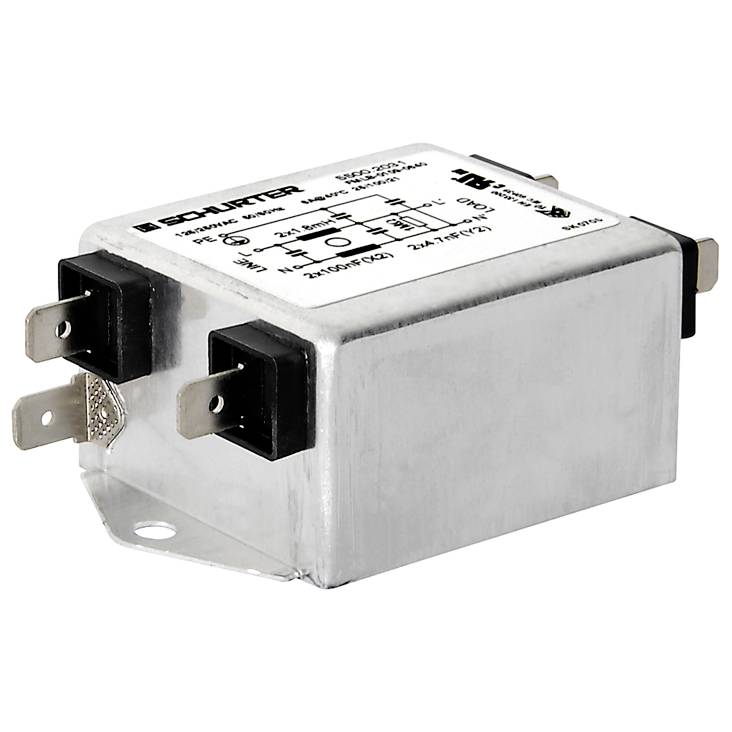

Image similar
Schurter 5500.2033 5500.2033 Line filter 16.00 A 0.64 mH (L x W x H) 75.00 x 45.00 x 28.60 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line filter
Inductance (L)
0.64 mH
Nominal current - rounded value
16 A
Nominal current
16.00 A
Datasheet (PDF)
Technical specifications
- Series FMLB-09
- Mounting type: Chassis assembly
- Dimensions: Length 75 mm
- Dimensions: Width 45 mm
- Dimensions: Height 28.6 mm
- Min. Operating temperature -25 °C
- Max. operating temperature: 100 °C
- Inductance 0.64 mH
- Approvals: CRUus, ENEC10
- Packaging type
Piece
- Product type
Line filter
- Inductance (L)
0.64 mH
- Nominal current
16.00 A
- Nominal current - rounded value
16 A
- Length
75.00 mm
- Width
45.00 mm
- Height
28.60 mm
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Manufacturer part #
5500.2033
- Type
5500.2033
- Content
1 pc(s)
- Dim
(L x W x H) 75.00 x 45.00 x 28.60 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3156692 Schurter 5500.2033 5500.2033 Line filter 16.00 A 0.64 mH (L x W x H) 75.00 x 45.00 x 28.60 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3156692 Schurter 5500.2033 5500.2033 Line filter 16.00 A 0.64 mH (L x W x H) 75.00 x 45.00 x 28.60 mm 1 pc(s) Piece
Description
Line filter in standard design
Standard attenuation
High insertion loss at full load or asymmetrical load, independent of the respective line impedance
Specially designed for industrial applications such as: Frequency converters, stepper motor drives, UPS systems, current converters
Suitable for use in devices according to IEC/UL 60950
This text is machine translated.
Standard attenuation
High insertion loss at full load or asymmetrical load, independent of the respective line impedance
Specially designed for industrial applications such as: Frequency converters, stepper motor drives, UPS systems, current converters
Suitable for use in devices according to IEC/UL 60950
This text is machine translated.
