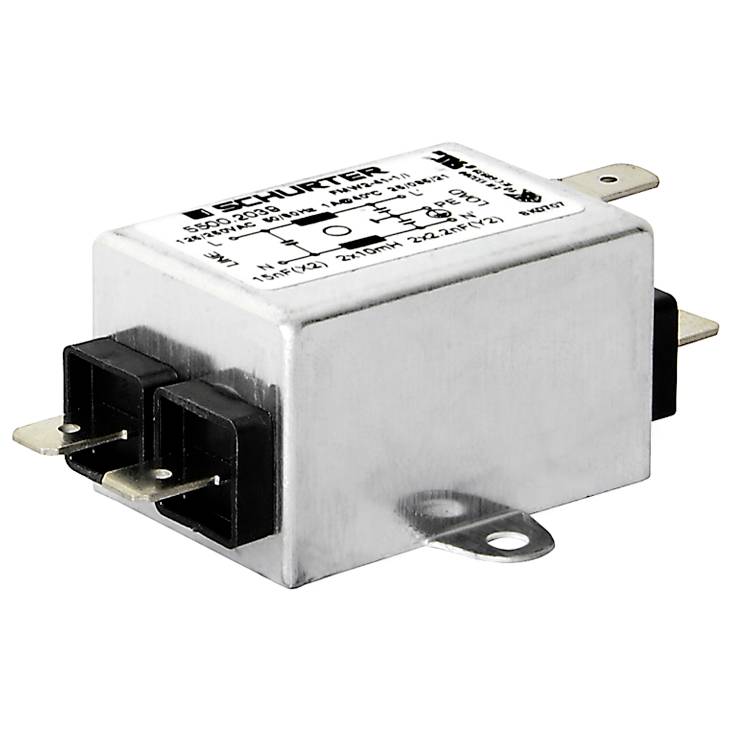

Image similar
Schurter 5500.2042 5500.2042 Line filter 10.00 A (L x W x H) 67.00 x 46.00 x 25.00 mm 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Line filter
Nominal current - rounded value
10 A
Nominal current
10.00 A
Leakage current
0.25 mA
Datasheet (PDF)
Technical specifications
- Series FMW-41
- Mounting type: Chassis assembly
- Dimensions: Length 67 mm
- Dimensions: Width 46 mm
- Dimensions: Height 25 mm
- Min. Operating temperature -25 °C
- Max. operating temperature: 100 °C
- Leakage current 0.25 mA max.
- Approvals: CRUus, ENEC10
- Packaging type
Piece
- Product type
Line filter
- Nominal current
10.00 A
- Nominal current - rounded value
10 A
- Leakage current
0.25 mA
- Length
67.00 mm
- Width
46.00 mm
- Height
25.00 mm
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Manufacturer part #
5500.2042
- Type
5500.2042
- Content
1 pc(s)
- Dim
(L x W x H) 67.00 x 46.00 x 25.00 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-25 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3156696 Schurter 5500.2042 5500.2042 Line filter 10.00 A (L x W x H) 67.00 x 46.00 x 25.00 mm 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3156696 Schurter 5500.2042 5500.2042 Line filter 10.00 A (L x W x H) 67.00 x 46.00 x 25.00 mm 1 pc(s) Piece
Description
Mains filter in standard design
Standard attenuation
Designed for standard applications
Protection against interference voltages from the mains
Interference voltages generated in the device are weakened strongly
Universal line filter for standard applications
Suitable for use in devices according to IEC/UL 60950
This text is machine translated.
Standard attenuation
Designed for standard applications
Protection against interference voltages from the mains
Interference voltages generated in the device are weakened strongly
Universal line filter for standard applications
Suitable for use in devices according to IEC/UL 60950
