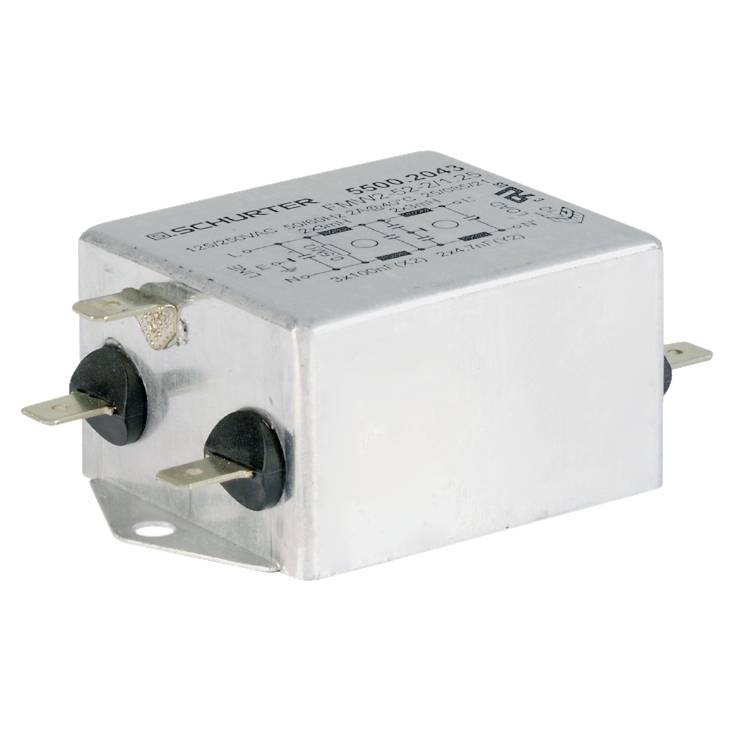

Schurter 5500.2043 5500.2043 Line filter 2.00 A 3.00 mH (L x W x H) 77.00 x 46.00 x 31.00 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line filter
Inductance (L)
3.00 mH
Nominal current - rounded value
2 A
Nominal current
2.00 A
Leakage current
0.50 mA
Datasheet (PDF)
Technical specifications
- Series FMW-52
- Mounting type: Chassis assembly
- Dimensions: Length 77 mm
- Dimensions: Width 46 mm
- Dimensions: Height 31 mm
- Min. Operating temperature -25 °C
- Max. operating temperature: 100 °C
- Leakage current 0.5 mA max.
- Inductance 3 mH
- Approvals: CRUus, ENEC10
- Product type
Line filter
- Inductance (L)
3.00 mH
- Nominal current
2.00 A
- Nominal current - rounded value
2 A
- Leakage current
0.50 mA
- Length
77.00 mm
- Width
46.00 mm
- Height
31.00 mm
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Manufacturer part #
5500.2043
- Type
5500.2043
- Content
1 pc(s)
- Dim
(L x W x H) 77.00 x 46.00 x 31.00 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3156697 Schurter 5500.2043 5500.2043 Line filter 2.00 A 3.00 mH (L x W x H) 77.00 x 46.00 x 31.00 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156697 Schurter 5500.2043 5500.2043 Line filter 2.00 A 3.00 mH (L x W x H) 77.00 x 46.00 x 31.00 mm 1 pc(s)
Description
Line filter in standard version
High damping
Designed for higher requirements
Protection against interference voltages from the mains
Interference voltages generated in the device are weakened strongly
For standard and industrial applications
Suitable for use in devices according to IEC / UL 60950
This text is machine translated.
High damping
Designed for higher requirements
Protection against interference voltages from the mains
Interference voltages generated in the device are weakened strongly
For standard and industrial applications
Suitable for use in devices according to IEC / UL 60950
