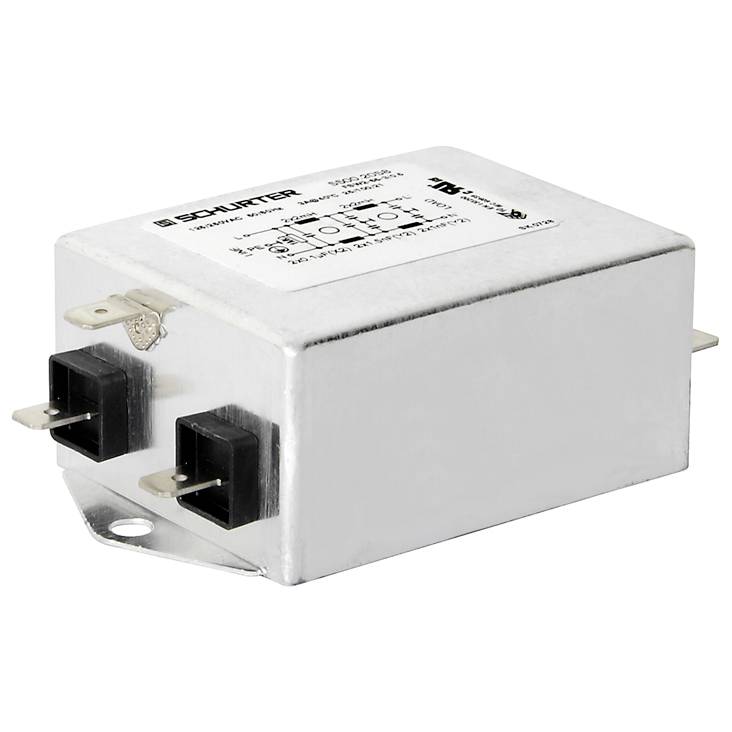

Schurter 5500.2058 5500.2058 Line filter 3.00 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Line filter
Nominal current - rounded value
3 A
Nominal current
3.00 A
Leakage current
0.50 mA
Min. temperature
-25 °C
Datasheet (PDF)
Technical specifications
- Series: FSW
- Mounting type: Chassis assembly
- Min. Operating temperature -25 °C
- Max. operating temperature: 100 °C
- Leakage current 0.5 mA max.
- Approvals: CRUus, ENEC10
- Product type
Line filter
- Nominal current
3.00 A
- Nominal current - rounded value
3 A
- Leakage current
0.50 mA
- Min. temperature
-25 °C
- Max. temperature
100 °C
- Manufacturer part #
5500.2058
- Type
5500.2058
- Content
1 pc(s)
- RoHS-compliant
Yes
- Operating temperature (max.)
100 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3156699 Schurter 5500.2058 5500.2058 Line filter 3.00 A 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156699 Schurter 5500.2058 5500.2058 Line filter 3.00 A 1 pc(s)
Description
Line filter in standard version
High damping
Designed for higher requirements
Protection against interference voltages from the mains
Specially designed for industrial applications such as: Frequency converters, stepper motor drives, UPS systems, current converters
Specially designed for switched-mode power supplies
Suitable for use in devices according to IEC / UL 60950
This text is machine translated.
High damping
Designed for higher requirements
Protection against interference voltages from the mains
Specially designed for industrial applications such as: Frequency converters, stepper motor drives, UPS systems, current converters
Specially designed for switched-mode power supplies
Suitable for use in devices according to IEC / UL 60950
