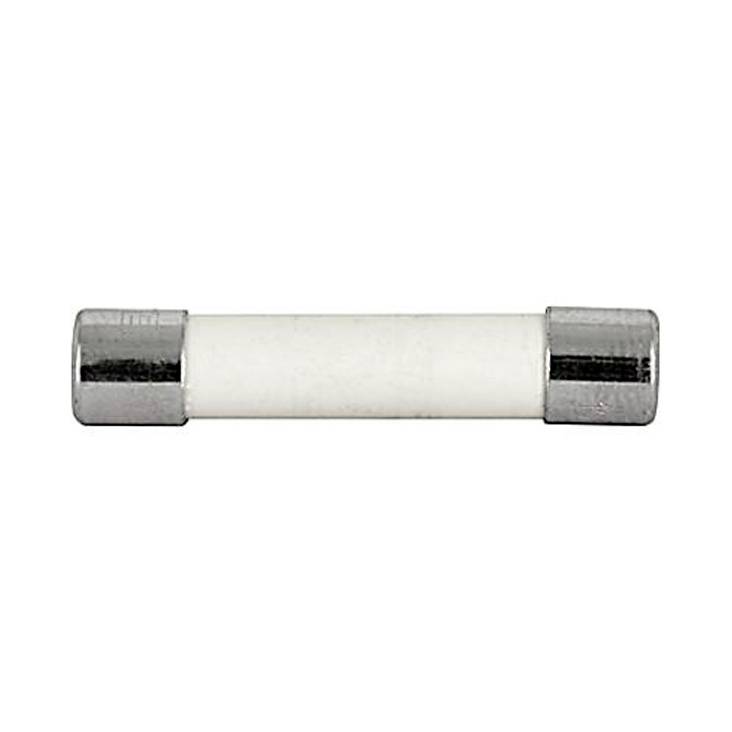

Image similar
Schurter 8020.0604 8020.0604 Micro fuse (Ø x L) 6.3 mm x 32 mm 15.00 A 250 V AC Time delay -T- Content 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Micro fuse
Nominal voltage
250 V AC
Nominal current - rounded value
15 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series: SUT
- Nominal voltage at 50 Hz/250 V AC
- Nominal current 15 A
- Approvals CE, cULus
- Trigger time: Slow-blow
- Contact material: Nickel-plated brass
- 6.3 x 32 mm case
- Applications: As primary protection in devices
- Casing material: Ceramic with sand filling
- Weighs 2.8 g.
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Climate category IEC 40/85/21
- Melting Integral: 152 A²/s.
- NOMINAL VOLTAGE V AC 250 V AC
- Voltage drop 81 mV
- UL 248-14 standards
- Packaging type
Piece
- Product type
Micro fuse
- Nominal voltage
250 V AC
- Dim
(Ø x L) 6.3 mm x 32 mm
- Nominal current
15.00 A
- Nominal current - rounded value
15 A
- Release characteristics
Time delay -T-
- Fuse layout
Ceramic tube (+ extinguishing agent)
- Length
32 mm
- (Ø)
6.3 mm
- Certification marks
UL 248-14
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
8020.0604
Documents & Downloads
Datasheet
Datasheet 3306206 Schurter 8020.0604 8020.0604 Micro fuse (Ø x L) 6.3 mm x 32 mm 15.00 A 250 V AC Time delay -T- Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3306206 Schurter 8020.0604 8020.0604 Micro fuse (Ø x L) 6.3 mm x 32 mm 15.00 A 250 V AC Time delay -T- Content 1 pc(s) Piece
Description
G fuse
Low impedance, up to 30A
Suitable for: 1-phase high-current applications up to 30A
This text is machine translated.
Low impedance, up to 30A
Suitable for: 1-phase high-current applications up to 30A
