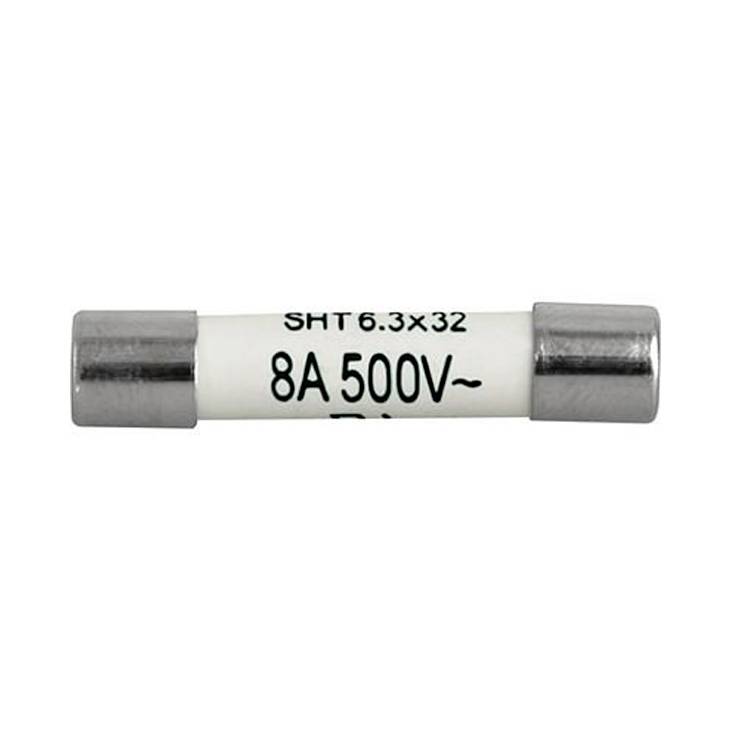

Image similar
Schurter 8020.5020 8020.5020 Micro fuse (Ø x L) 6.3 mm x 32 mm 8.00 A 400 V DC Time delay -T- Content 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Micro fuse
Nominal voltage
400 V DC
Nominal current - rounded value
8 A
Release characteristics
Time delay -T-
Datasheet (PDF)
Technical specifications
- Series: SHT
- Nominal voltage at 50/60Hz 400 V DC
- Nominal current 8 A
- Approvals: CULus
- Trigger time: Slow-blow
- Contact material: Nickel-plated copper alloy
- 6.3 x 32 mm case
- Applications: Suitable for: 3-phase applications, DC-applications, photovoltaics, frequency converters, power electronics and commercial cooking devices
- Casing material: Ceramic
- Weighs 2.84 g.
- Min. Operating temperature range -40 °C.
- Operating temperature range, max. 85 °C.
- Climate category IEC 40/85/21
- Melting Integral: 285 A²/s.
- NOMINAL VOLTAGE V AC 500 V AC
- Voltage drop 110 mV
- Power loss, max. 2.6 W.
- UL 248-14 standards
- Packaging type
Piece
- Product type
Micro fuse
- Nominal voltage
400 V DC
- Dim
(Ø x L) 6.3 mm x 32 mm
- Nominal current
8.00 A
- Nominal current - rounded value
8 A
- Switch-off capacity
3500 A
- Release characteristics
Time delay -T-
- Fuse layout
Ceramic tube
- Length
32 mm
- (Ø)
6.3 mm
- Certification marks
UL 248-14
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
8020.5020
Documents & Downloads
Datasheet
Datasheet 3306216 Schurter 8020.5020 8020.5020 Micro fuse (Ø x L) 6.3 mm x 32 mm 8.00 A 400 V DC Time delay -T- Content 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3306216 Schurter 8020.5020 8020.5020 Micro fuse (Ø x L) 6.3 mm x 32 mm 8.00 A 400 V DC Time delay -T- Content 1 pc(s) Piece
Description
G fuse
High rated voltages of up to 500V AC and 400V DC
High breaking capacity of up to 3500A
Suitable for continuous pulse-shaped currents
Used for commercial cooking appliances according to UL 197
This text is machine translated.
High rated voltages of up to 500V AC and 400V DC
High breaking capacity of up to 3500A
Suitable for continuous pulse-shaped currents
Used for commercial cooking appliances according to UL 197
This text is machine translated.
