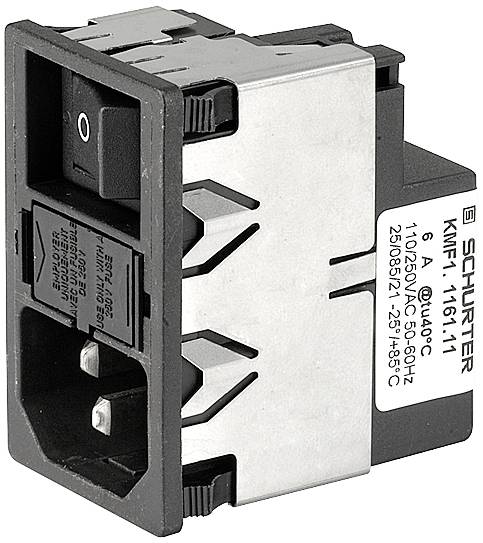

Image similar
Schurter KMF1.1161.11 KMF1.1161.11 EMI filter 250 V 6.00 A 0.70 mH (L x W x H) 50.00 x 30.00 x 47.50 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
EMI filter
Inductance (L)
0.70 mH
Nominal voltage
250 V
Nominal current - rounded value
6 A
Mounting type
Panel-fit
Datasheet (PDF)
Technical specifications
- Series KMF
- Mounting type: Panel mounting
- Dimensions: Length 50 mm
- Dimensions: Width 30.5 mm
- Dimensions: Height 47.5 mm
- Min. Operating temperature -25 °C
- Max. operating temperature: 85 °C
- Nominal voltage at 50 /60Hz 250 V
- Dielectric strength 2NO, conductor/earth 2.7 kV DC
- Dielectric strength 2NO, conductor/conductor 1.7 kV DC
- Leakage current 0.5 mA max.
- Inductance 0.7 mH
- Cx 47 nF
- Cy 2.2 nF
- Climate category HPF (25/085/21)
- Approvals: CRUus, ENEC10
- Protection class/IP IP40
- Product type
EMI filter
- Mounting type
Panel-fit
- Inductance (L)
0.70 mH
- Capacity (elec.)
47 nF
- Nominal voltage
250 V
- Nominal current
6.00 A
- Nominal current - rounded value
6 A
- Leakage current
0.50 mA
- Material
Metal
- Length
50.00 mm
- Width
30.00 mm
- Height
47.50 mm
- Min. temperature
-25 °C
- Max. temperature
85 °C
IP40
- Manufacturer part #
KMF1.1161.11
- Type
KMF1.1161.11
- Content
1 pc(s)
- Dim
(L x W x H) 50.00 x 30.00 x 47.50 mm
- RoHS-compliant
Yes
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
-25 °C
Documents & Downloads
Datasheet
Datasheet 3156876 Schurter KMF1.1161.11 KMF1.1161.11 EMI filter 250 V 6.00 A 0.70 mH (L x W x H) 50.00 x 30.00 x 47.50 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3156876 Schurter KMF1.1161.11 KMF1.1161.11 EMI filter 250 V 6.00 A 0.70 mH (L x W x H) 50.00 x 30.00 x 47.50 mm 1 pc(s)
Description
Filter in the metal housing with integrated cold-device plug, fuse holder and 2-pin, unilluminated power switch
Fuse drawer for two fuses 5x20mm (to be ordered separately)
With 4.8x0.8 mm spade connector
This text is machine translated.
Fuse drawer for two fuses 5x20mm (to be ordered separately)
With 4.8x0.8 mm spade connector
