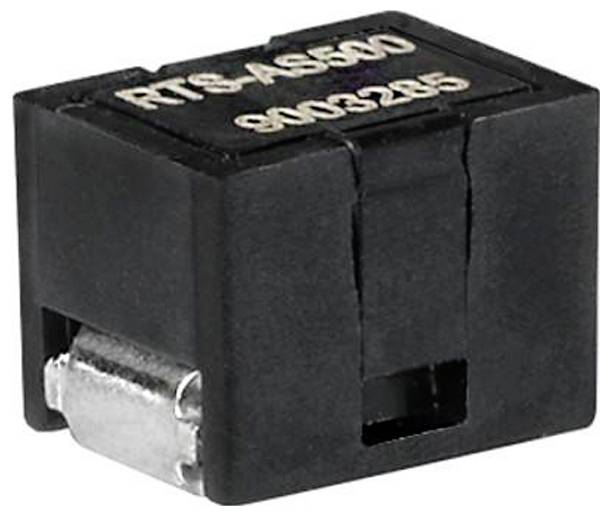

Name: Schurter Thermal fuse 60 V DC (L x W x H) 8.8 x 6.6 x 6.7 mm 1 pc(s)
Brand: Schurter
SKU: 3738236

1/4

Product type

Thermal fuse

Nominal voltage

60 V DC

Connection

Soldering

Content

1 pc(s)

Dim

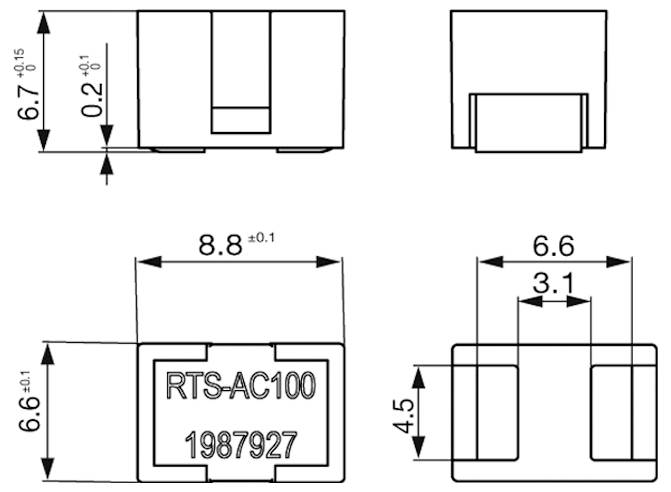

(L x W x H) 8.8 x 6.6 x 6.7 mm

Datasheet (PDF)

Unavailable

Sales and shipping:

Highlights & Details

SMD-temperature fuse 400A 500-580uohm

SMD temperature protection for high currents
Patented SMD thermal fuse as protection against thermal penetration by power semiconductors such as MOSFET's, ICs, IGBT's, Triac's, SCR's, etc.
Highest reliability through complete galvanic separation
Galvanic isolation takes place completely inside the RTS thermal fuse
Can cleanly separate rated voltages up to 60V DC

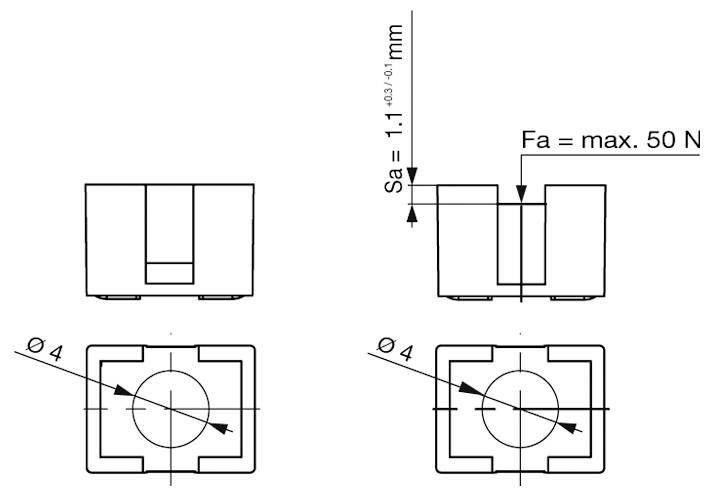

Reflow compatible by means of mechanical activation downstream
Space-saving thanks to integrated shunt

Series RTS
Re-reeling capable: Yes
Applications: Wherever power transistors are in use; Automotive industry: Cooling fan applications, ABS power steering, PTC heaters, HVAC, Glow plugs, diesel radiators; industry: battery protection, power supplies, lighting ballasts, H-bridge circuits, motor drives
Housing material: Plastic
Connection type: Solder connection
RATED VOLTAGE V/DC 60 V/DC
SMD mounting
Switch-off current, max. 400 A
Cold resistance, min.: 500 µOhm
Cold resistance, max. 580 µOhm
Switch-off temperature min.: 175 °C
Qualification: AEC-Q200

Datasheet 3738236 Schurter Thermal fuse 60 V DC (L x W x H) 8.8 x 6.6 x 6.7 mm 1 pc(s)

User & Safety Instructions 3738236 Schurter Thermal fuse 60 V DC (L x W x H) 8.8 x 6.6 x 6.7 mm 1 pc(s)

Schurter SMD temperature fuse RTS 400A 500µOhm...580µOhm
