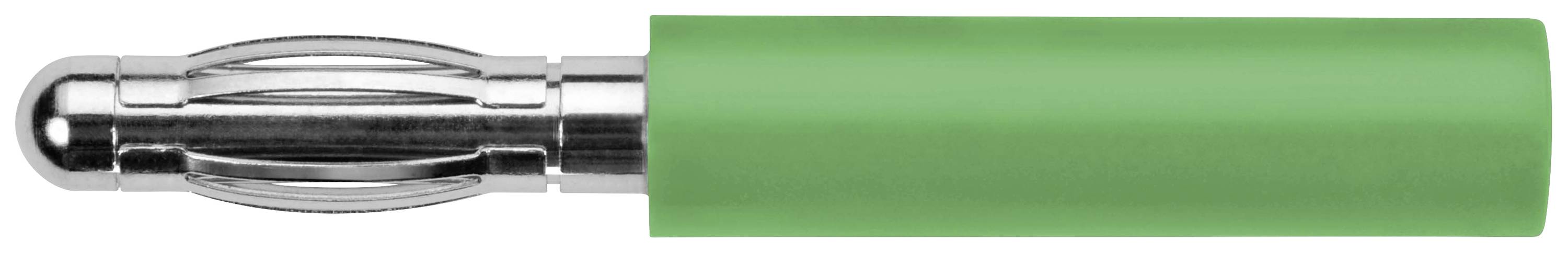

Schützinger Adapter Adapter Pin diameter: 4 mm Green 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Adapter
Connector type
Adapter
Pin Ø
4 mm
Connection
Jack connector
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Adapter A 40-40 S Ni/gn
- 32 A Green
Technical specifications
- Design 4 mm-Program
- Contact parts: Nickel-plated
- Insulation parts PA 6.6 (polyamide)
- Colour: green.
- Connector: Socket
- Constant resistance 4) 3 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2) 32 A.
- Operating temperature from -25 °C to +80 °C
- Packaging type
Piece
- Product type
Adapter
- Connector type
Adapter
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
Jack connector
- Factory colour
Green
- Manufacturer part #
A 40-40 S Ni / GN
- Type
A 40-40 S Ni / GN
- Dim
(Ø) 4 mm
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Nominal voltage
30 V AC
60 V DC
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2899664 Schützinger Adapter Adapter Pin diameter: 4 mm Green 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2899664 Schützinger Adapter Adapter Pin diameter: 4 mm Green 1 pc(s) Piece
