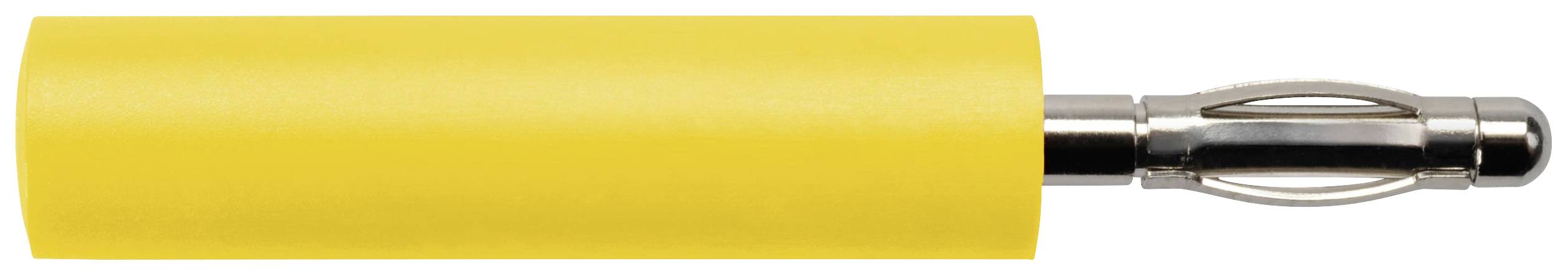

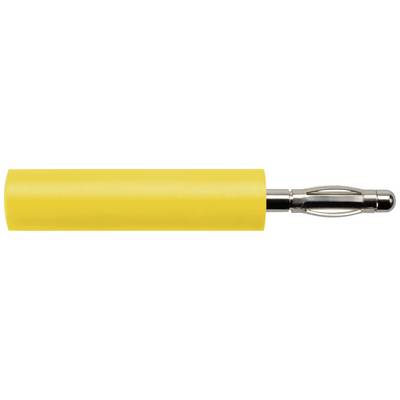

Schützinger Adapter Adapter Pin diameter: 4 mm Yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Adapter
Connector type
Adapter
Pin Ø
4 mm
Connection
Jack connector
Nominal current
10 A
Datasheet (PDF)
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details
Adapter A 20-40 S Ni/ye
- 10 A Yellow
Technical specifications
- Design 2 mm-Program
- Contact parts: Nickel-plated
- Insulation parts PA 6.6 (polyamide)
- Colour: yellow.
- Connector: Socket
- Constant resistance 4) 6 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2) 10 A.
- Operating temperature from -25 °C to +80 °C
- Product type
Adapter
- Connector type
Adapter
- Pin Ø
4 mm
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
Jack connector
- Factory colour
Yellow
- Manufacturer part #
A 20-40 S Ni / GE
- Type
A 20-40 S Ni / GE
- Dim
(Ø) 4 mm
- Jack diameter
2 mm
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Nominal voltage
30 V AC
60 V DC
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
