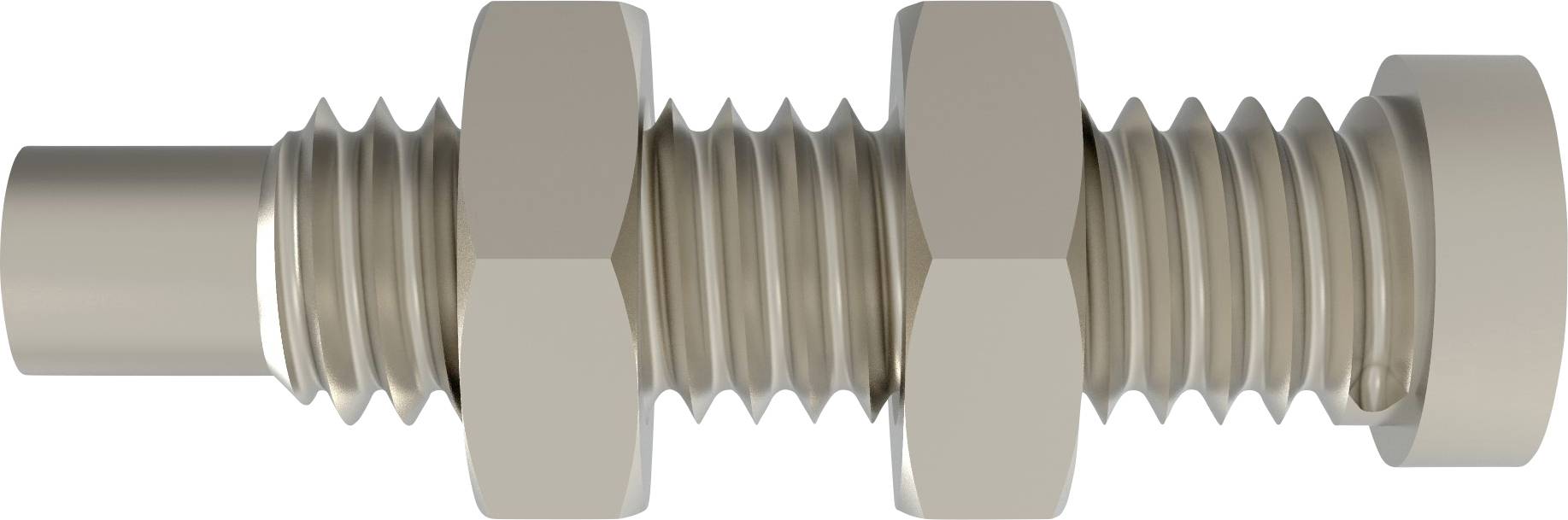

Schützinger BU 20 Ni Socket straight 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket
Connector type
straight
Connection
Socket
Soldering
Nominal current
10 A
Nominal current - rounded value
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.09
10
8% = € 0.16
€ 1.93
25
11% = € 0.22
€ 1.87
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
14-day return policy included
Highlights & Details
Socket BU 20 Ni
- 10 A
Technical specifications
- Diameter of socket 2 mm
- Connection 1: Socket
- Connection 2: Soldering
- Design 2 mm-Program
- Contact parts: Nickel-plated
- Mounting hole 4.1 mm
- Connection: Solder up to 0.75 mm²
- Constant resistance 3 mΩ / 2 mΩ
- Rated voltage 30 VAC / 60 VDC
- Rated current 10 A
- Operating temperature from -40 °C to +110 °C
- Product type
Socket
- Connector type
straight
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
Socket
Soldering
- Insulation type
Not insulated
- Manufacturer part #
99022719
- Type
BU 20 Ni
- Type
2 mm program
- Jack diameter
2 mm
- Content
1 pc(s)
- Contact material
Nickel plated
- Nominal voltage
30 V AC
60 V DC
- Temperature range
From -40 °C to +110 °C. °C
- Max. resistance
3 mΩ
Documents & Downloads
Datasheet
Datasheet 3385747 Schützinger BU 20 Ni Socket straight 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3385747 Schützinger BU 20 Ni Socket straight 1 pc(s)
Description
Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
This text is machine translated.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
This text is machine translated.
