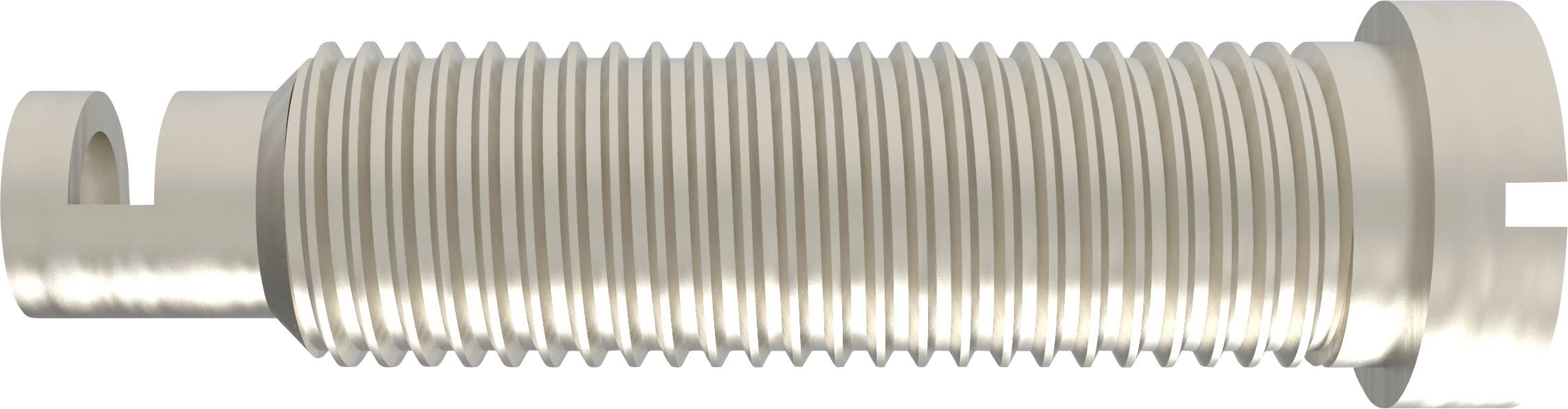

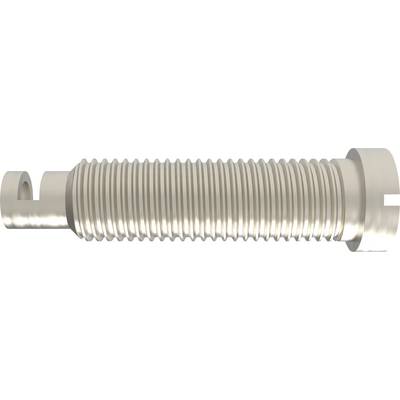

Schützinger BU 24 Ni Socket straight Pin diameter: 2.4 mm 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Socket
Connector type
straight
Pin Ø
2.4 mm
Connection
Socket
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.34
10
7% = € 0.17
€ 2.17
25
10% = € 0.24
€ 2.10
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.34 / piece)
€ 2.34
plus VAT.
14-day return policy included
Highlights & Details
Socket BU 24 Ni
- 12 A
Technical specifications
- Diameter of socket 2.4 mm
- Connection 1: Socket
- Connection 2: Soldering
- Design 2.4 mm-Program
- Silver-plated contacts
- Mounting hole 4.1 mm
- Connection: Solder up to 0.75 mm²
- Constant resistance 3 mΩ / 2 mΩ
- Rated voltage 30 VAC / 60 VDC
- Rated current 12 A
- Operating temperature from -40 °C to +110 °C
- Packaging type
Single
- Product type
Socket
- Connector type
straight
- Pin Ø
2.4 mm
- Nominal current
12 A
- Nominal current - rounded value
12 A
- Cross section (flexible) (max.)
0.75 mm²
- Connection
Socket
Soldering
- Insulation type
Not insulated
- Manufacturer part #
99022848
- Type
BU 24 Ni
- Dim
(Ø) 4.1 mm
- Type
2.4 mm program
- Scoop-proof
Yes
- Jack diameter
2.4 mm
- Content
1 pc(s)
- Insulation material
Silver plated
- Contact material
Nickel plated
- Dimensions
4.1 mm
- Nominal voltage
30 V AC
60 V DC
- (Ø)
4.1 mm
- Temperature range
From -40 °C to +110 °C. °C
- Max. resistance
3 mΩ
Documents & Downloads
Datasheet
Datasheet 3385748 Schützinger BU 24 Ni Socket straight Pin diameter: 2.4 mm 1 pc(s) Single
User & Safety Instructions
User & Safety Instructions 3385748 Schützinger BU 24 Ni Socket straight Pin diameter: 2.4 mm 1 pc(s) Single
Description
Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
This text is machine translated.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
