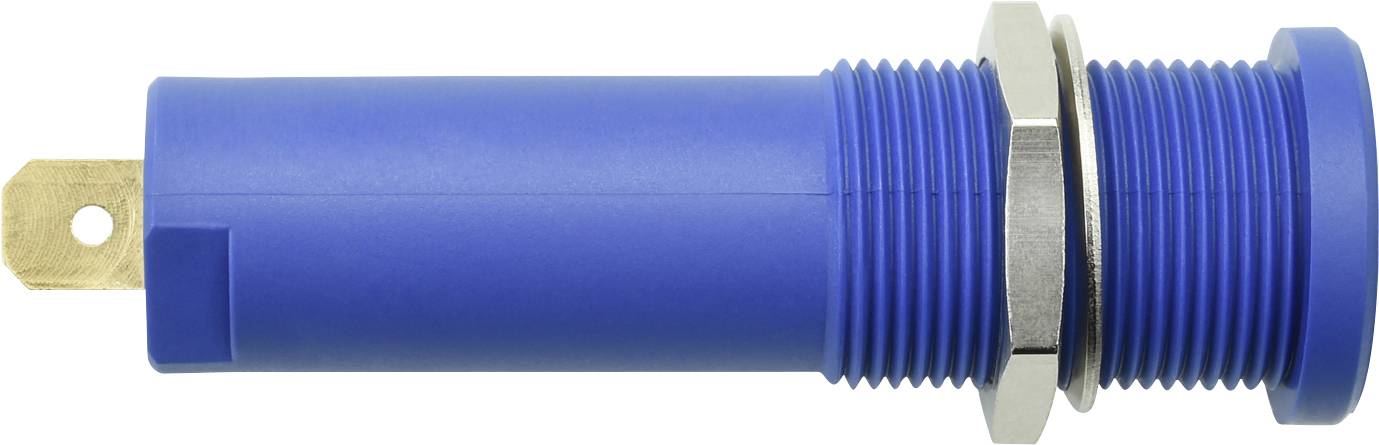

Schützinger DI HSEB 3125 L Au / BL HV safety socket Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
HV safety socket
Connection
Soldering
Nominal current
16 A
Nominal current - rounded value
16 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.55
5
6% = € 0.46
€ 7.09
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Schützinger DI HSEB 3125 L Au/BL
- 16 A Blue
Our service for you
Technical specifications
- Fixed by nut hexagon: M12 x 0.75
- Terminal: FSH 4.8 mm x 0.8 mm or solder
- Contact resistance mΩ: 3 mΩ
- Maximum torque hex nut, Ncm: 45 Ncm
- Operating temperature: -25 °C.
- Operating temperature up to +80 °C.
- Packaging type
Piece
- Product type
HV safety socket
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Connection
Soldering
- Factory colour
Blue
- Manufacturer part #
DI HSEB 3125 L Au / BL
- Type
DI HSEB 3125 L Au / BL
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Gold plated
- Nominal voltage
1000 V
- RoHS-compliant
Yes
