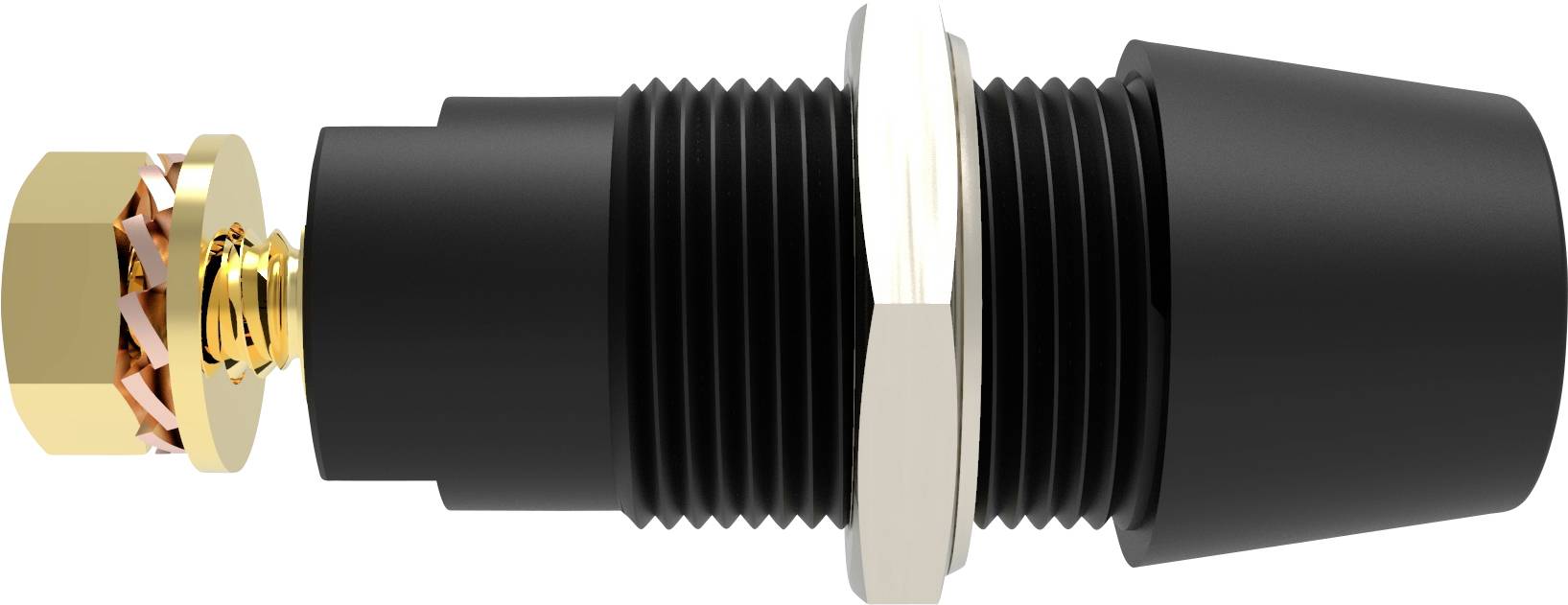

Schützinger DI SAB 9430 Au / SW Safety surface-mount socket straight Pin diameter: 4 mm Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety surface-mount socket
Connector type
straight
Pin Ø
4 mm
Connection
Socket
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 9.24
3
6% = € 0.53
€ 8.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 9.24 / piece)
€ 9.24
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Mounted safety socket DI SAB 9430 Au / black
- 32 A Black
Technical specifications
- Colour, black
- Diameter of socket 4 mm
- Connection 1: Socket
- Connection 2: Screws
- Design 4 mm-Safety program
- Contact parts: Gold-plated
- PA 6.6 (polyamide) UL94 - V2
- Mounting hole 12.2 mm
- M4 x 0.7 nuts
- Constant resistance 7 mΩ / 5 mΩ
- Rated voltage 1500V DC 1000V CAT III 600V CAT IV.
- Rated current 32 A
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 45 Ncm
- Tightening torque of M4 nut: 100 Ncm
- Packaging type
Piece
- Product type
Safety surface-mount socket
- Connector type
straight
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
Socket
Screws
- Factory colour
Black
- Insulation type
Insulated
- Manufacturer part #
99023239
- Type
DI SAB 9430 Au / SW
- Dim
12.2
- Type
4 mm safety program
- Scoop-proof
Yes
- Jack diameter
4 mm
- Thread type
M4 x 0.7 nuts
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Gold plated
- Dimensions
12.2 mm
- Nominal voltage
1500 V DC
1000 V
600 V
- Temperature range
From -25 °C to +80 °C. °C
- Max. resistance
5 mΩ
Documents & Downloads
Datasheet
Datasheet 3385763 Schützinger DI SAB 9430 Au / SW Safety surface-mount socket straight Pin diameter: 4 mm Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3385763 Schützinger DI SAB 9430 Au / SW Safety surface-mount socket straight Pin diameter: 4 mm Black 1 pc(s) Piece
Information
Information 3385763 Schützinger DI SAB 9430 Au / SW Safety surface-mount socket straight Pin diameter: 4 mm Black 1 pc(s) Piece
Description
Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
This text is machine translated.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
