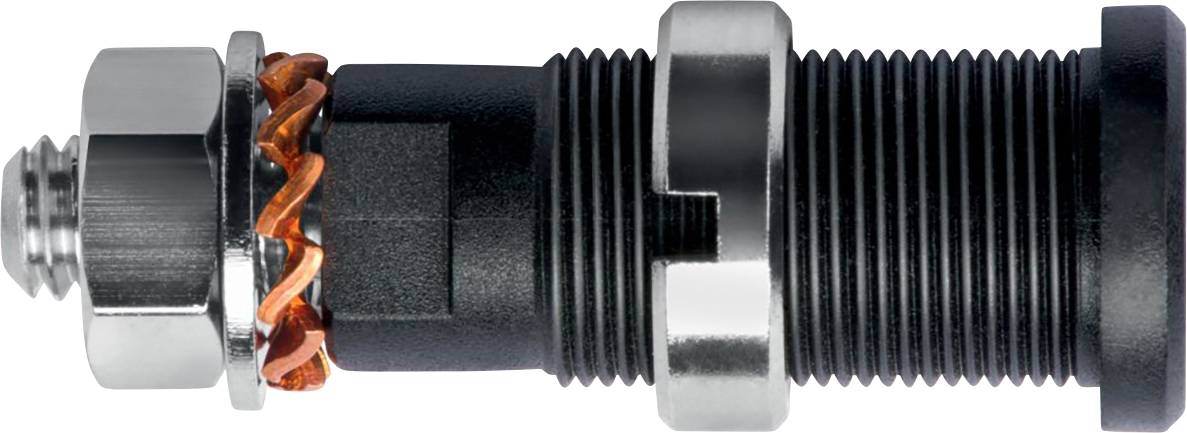

Schützinger DI SEB 3401 Ni / SW Safety socket Black 1 pc(s)
EAN:
Part number:
Item no:
Product type
Safety socket
Connection
Soldering
Nominal current
10 A
Nominal current - rounded value
10 A
Factory colour
Black
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.03
5
6% = € 0.32
€ 4.71
10
9% = € 0.46
€ 4.57
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Schützinger DI SEB 3401 Ni/SW
- 10 A Black
Our service for you
Technical specifications
- Fixed by nut slot: Nickel-plated
- Terminal: soldering
- Contact resistance mΩ: 5 mΩ
- Maximum torque fixing nut, Ncm: 30 Ncm
- Operating temperature: -25 °C.
- Operating temperature up to +80 °C.
- Product type
Safety socket
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
Soldering
- Factory colour
Black
- Manufacturer part #
DI SEB 3401 Ni / SW
- Type
DI SEB 3401 Ni / SW
- Scoop-proof
Yes
- Jack diameter
2 mm
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Nominal voltage
600 V
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2342864 Schützinger DI SEB 3401 Ni / SW Safety socket Black 1 pc(s)
