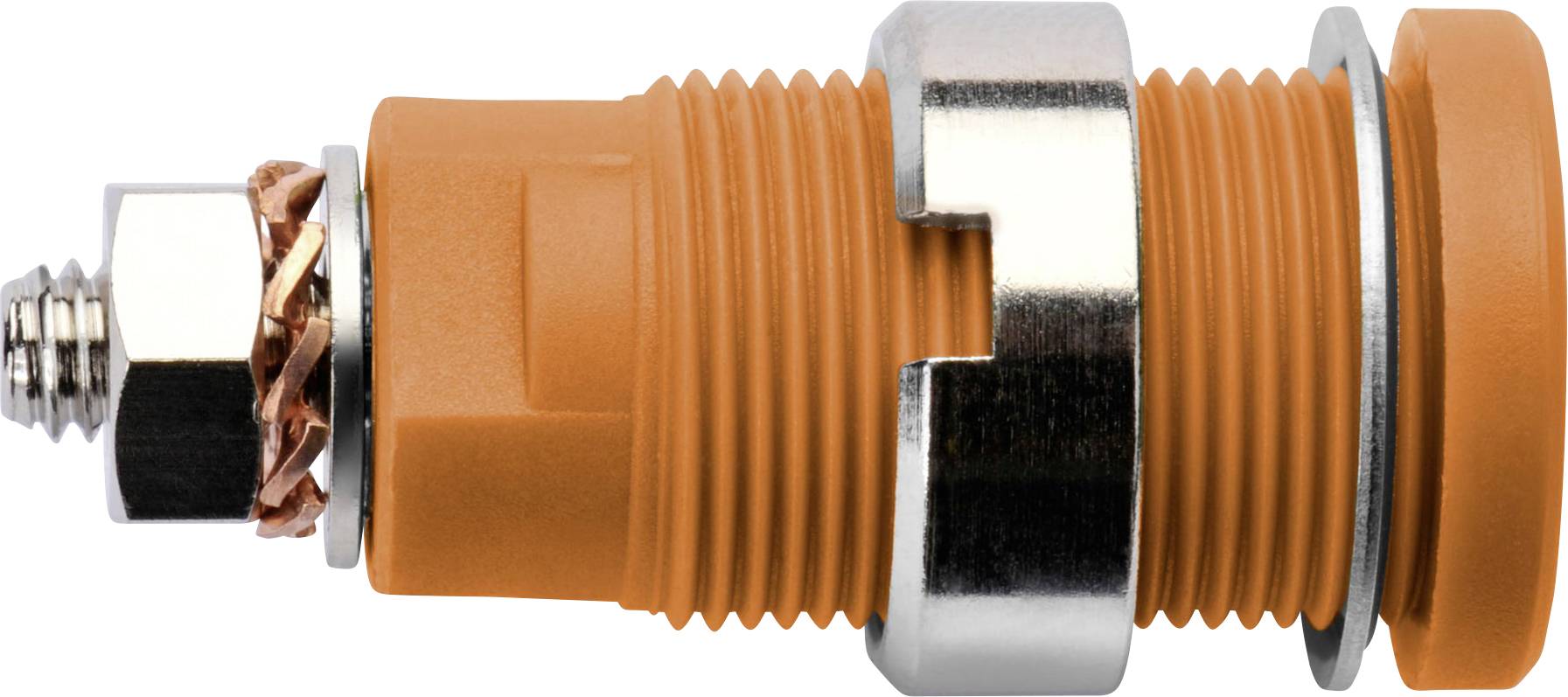

Schützinger DI SEB 6445 Ni / OR Safety socket Orange 1 pc(s)
EAN:
Part number:
Item no:
Product type
Safety socket
Connection
Screws
Nominal current
32 A
Nominal current - rounded value
32 A
Factory colour
Orange
Datasheet (PDF)
Number
Total (€ 1.92 / piece)
€ 1.92
plus VAT.
Only 4 Piece(s) available
Highlights & Details
Schützinger DI SEB 6445 Ni/OR
- 32 A Orange
Our service for you
Technical specifications
- Fixed by nut slot: M12 x 0.75
- Terminal: M4
- Contact resistance mΩ: 7 mΩ
- Maximum torque fixing nut, Ncm: 45 Ncm
- Maximum torque M4 nut, Ncm: 100 Ncm
- Operating temperature: -25 °C.
- Operating temperature up to +80 °C.
- Product type
Safety socket
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
Screws
- Factory colour
Orange
- Manufacturer part #
DI SEB 6445 Ni / OR
- Type
DI SEB 6445 Ni / OR
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Nominal voltage
1000 V
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2342871 Schützinger DI SEB 6445 Ni / OR Safety socket Orange 1 pc(s)
