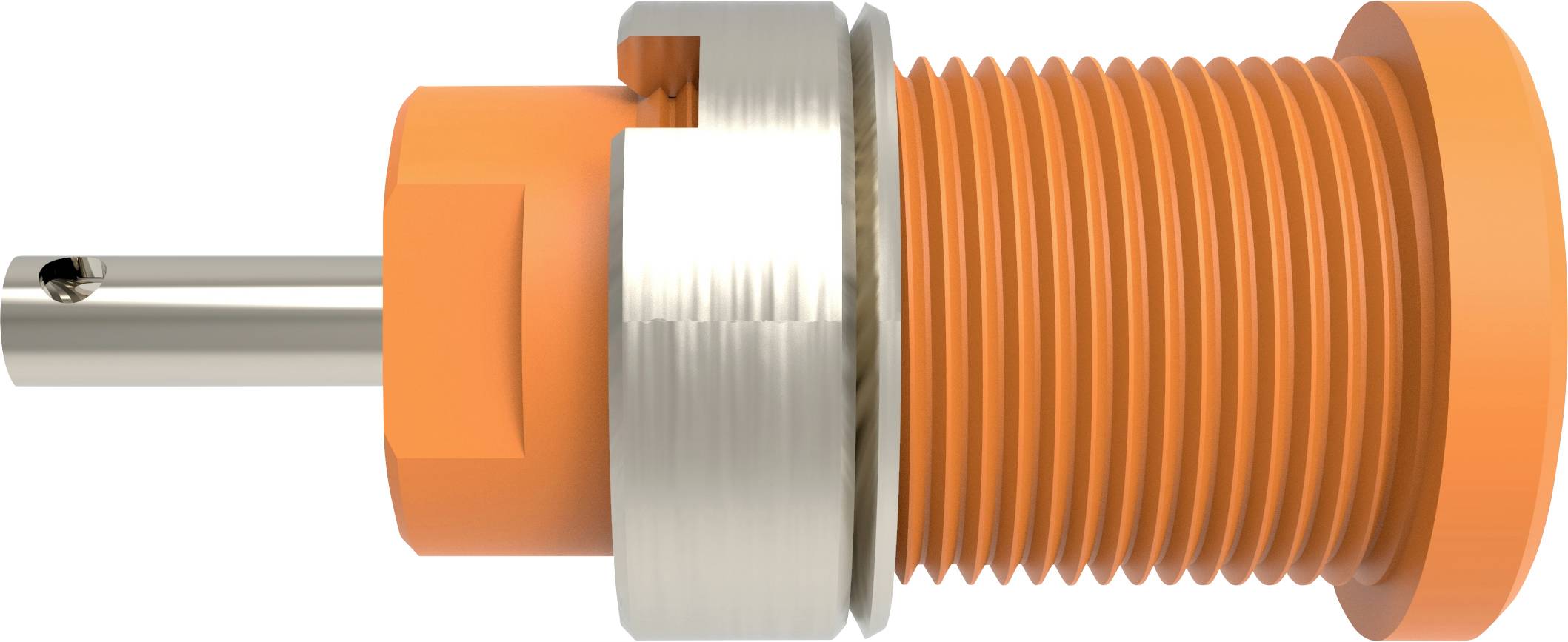

Schützinger DI SEB 6525 Ni / OR Safety socket straight Orange 1 pc(s)
EAN:
Part number:
Item no:
Product type
Safety socket
Connector type
straight
Connection
Socket
Soldering
Nominal current
10 A
Nominal current - rounded value
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 3.61
10
7% = € 0.27
€ 3.34
25
11% = € 0.38
€ 3.23
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 3.61 / piece)
€ 3.61
plus VAT.
14-day return policy included
Highlights & Details
Safety panel jack DI SEB 6525 Ni/OR
- 10 A Orange
Technical specifications
- Colour orange.
- Diameter of socket 4 mm
- Connection 1: Socket
- Connection 2: Soldering
- Design 4 mm-Safety program
- Contact parts: Nickel-plated
- PA 6.6 (polyamide) UL94 - V2
- Mounting hole 12.2 mm
- Connection: Soldering
- Constant resistance 7 mΩ
- Nominal voltage 1000 V, CAT III
- Rated current 10 A
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 45 Ncm
- Product type
Safety socket
- Connector type
straight
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Connection
Socket
Soldering
- Factory colour
Orange
- Insulation type
Insulated
- Manufacturer part #
99023280
- Type
DI SEB 6525 Ni / OR
- Dim
(Ø) 4 mm
- Type
4 mm safety program
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Dimensions
12.2+0.1 mm
- Nominal voltage
1000 V
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
- Max. resistance
7 mΩ
Documents & Downloads
Datasheet
Datasheet 3385789 Schützinger DI SEB 6525 Ni / OR Safety socket straight Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3385789 Schützinger DI SEB 6525 Ni / OR Safety socket straight Orange 1 pc(s)
Information
Information 3385789 Schützinger DI SEB 6525 Ni / OR Safety socket straight Orange 1 pc(s)
Description
Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
This text is machine translated.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
