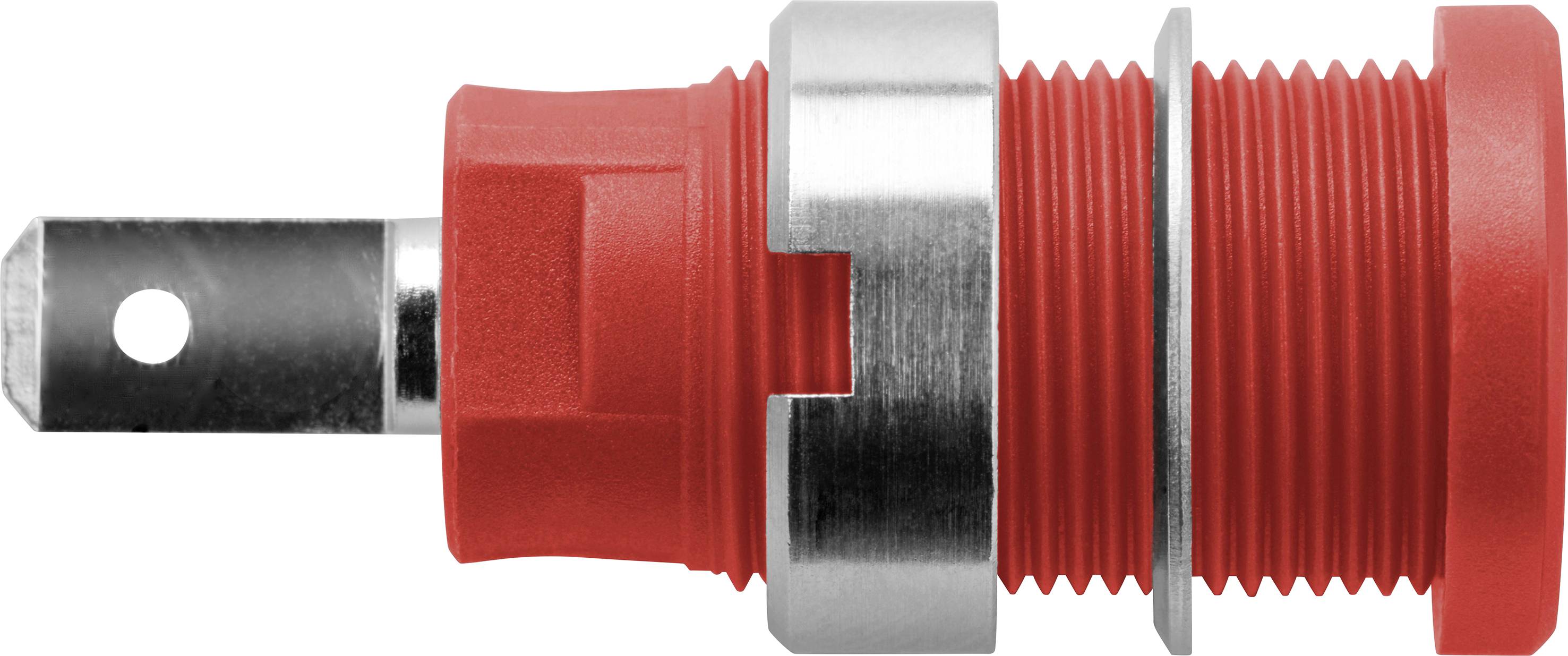

Schützinger DI SEB 7077 Ni / RT Safety socket Red 1 pc(s)
EAN:
Part number:
Item no:
Product type
Safety socket
Connection
Type C CEE 7/16 plug 6.3 mm
Nominal current
24 A
Nominal current - rounded value
24 A
Factory colour
Red
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
14-day return policy included
Highlights & Details
Schützinger DI SEB 7077 Ni/RT
- 24 A Red
Our service for you
Technical specifications
- Fixed by nut slot: M12 x 0.75
- Terminal: FSH 4.8 mm x 0.8 mm
- Contact resistance mΩ: 5 mΩ
- Maximum torque fixing nut, Ncm: 45 Ncm
- Operating temperature: -25 °C.
- Operating temperature up to +80 °C.
- Product type
Safety socket
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
Type C CEE 7/16 plug 6.3 mm
- Factory colour
Red
- Manufacturer part #
DI SEB 7077 Ni / RT
- Type
DI SEB 7077 Ni / RT
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Nominal voltage
1000 V
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2342914 Schützinger DI SEB 7077 Ni / RT Safety socket Red 1 pc(s)
