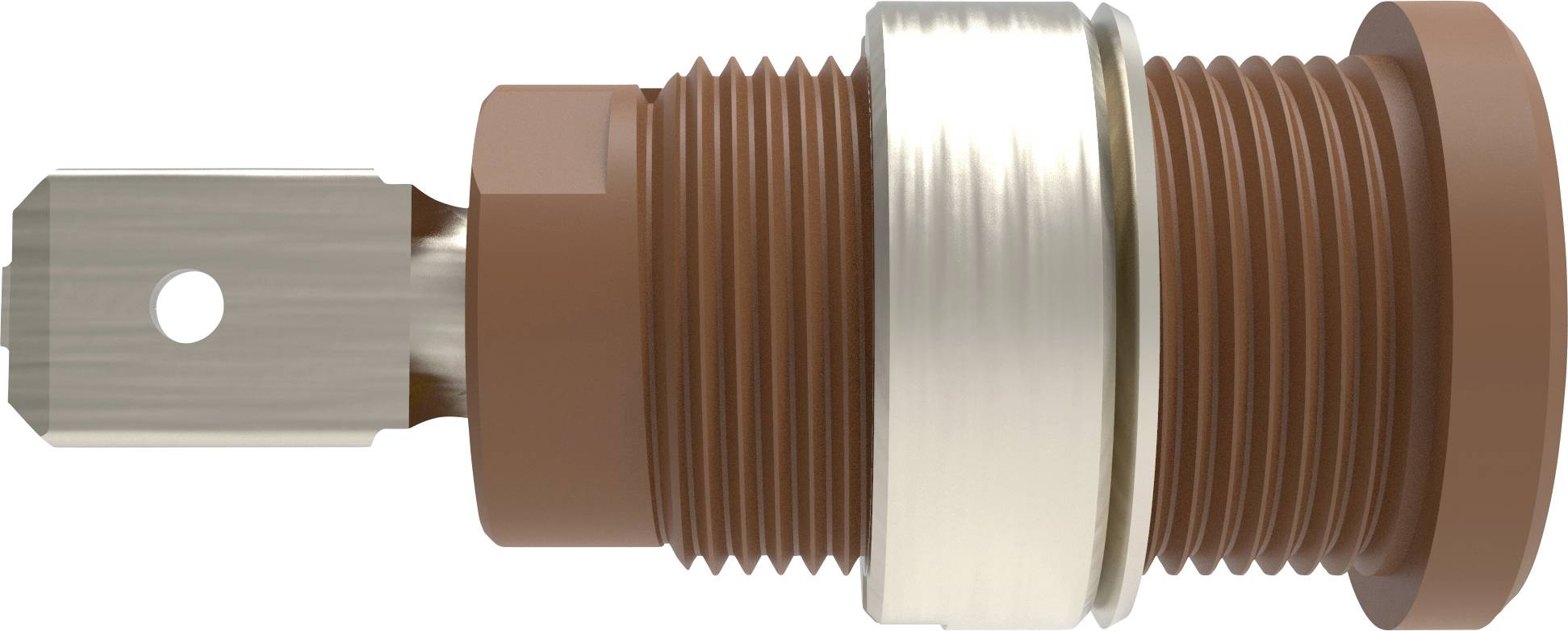

Schützinger DI SEB 7080 Ni / BR Safety socket straight Pin diameter: 4 mm Brown 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety socket
Connector type
straight
Pin Ø
4 mm
Connection
Socket
Type C CEE 7/16 plug 6.3 mm
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
10
8% = € 0.21
€ 2.55
25
10% = € 0.28
€ 2.48
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
14-day return policy included
Highlights & Details
Safety panel jack DI SEB 7080 Ni/BR
- 24 A Brown
Technical specifications
- Colour: brown.
- Diameter of socket 4 mm
- Connection 1: Socket
- Connection 2: Flat plug 6.3 mm
- Design 4 mm-Safety program
- Contact parts: Nickel-plated
- PA 6.6 (polyamide) UL94 - V2
- Mounting hole 12.2 mm
- FSH 6.3 mm x 0.8 mm
- Constant resistance 5 mΩ
- Nominal voltage 1000 V, CAT III
- Rated current 24 A
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 45 Ncm
- Packaging type
Piece
- Product type
Safety socket
- Connector type
straight
- Pin Ø
4 mm
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
Socket
Type C CEE 7/16 plug 6.3 mm
- Factory colour
Brown
- Insulation type
Insulated
- Manufacturer part #
99023282
- Type
DI SEB 7080 Ni / BR
- Dim
(Ø) 4 mm
- Type
4 mm safety program
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Dimensions
12.2 mm
- Nominal voltage
1000 V
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
- Max. resistance
5 mΩ
Documents & Downloads
Datasheet
Datasheet 3385791 Schützinger DI SEB 7080 Ni / BR Safety socket straight Pin diameter: 4 mm Brown 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3385791 Schützinger DI SEB 7080 Ni / BR Safety socket straight Pin diameter: 4 mm Brown 1 pc(s) Piece
Information
Information 3385791 Schützinger DI SEB 7080 Ni / BR Safety socket straight Pin diameter: 4 mm Brown 1 pc(s) Piece
Description
Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
