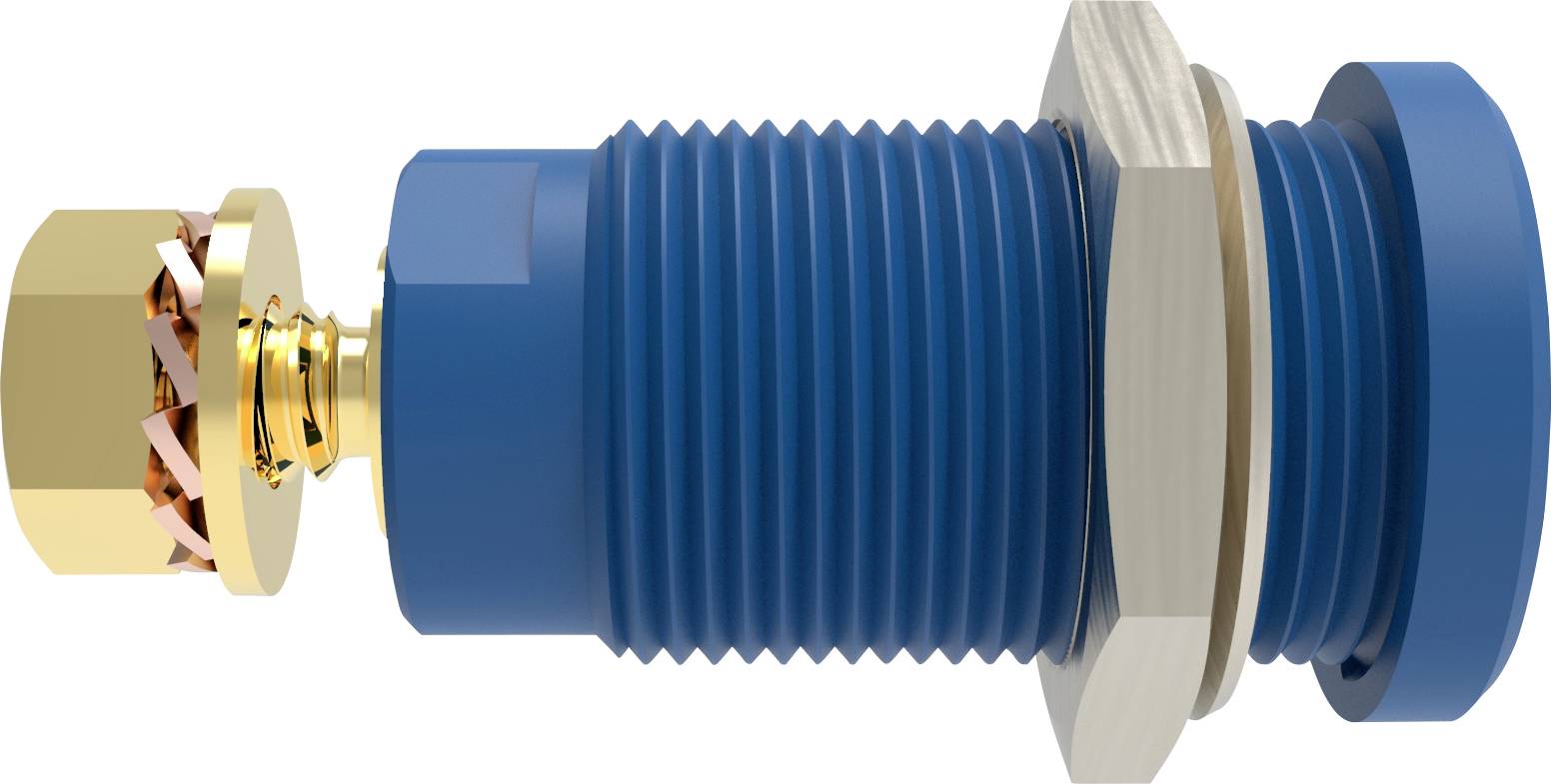

Schützinger DI SEB 9424 Au / BL Safety socket straight Pin diameter: 4 mm Blue 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety socket
Connector type
straight
Pin Ø
4 mm
Connection
Socket
Screws
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 8.39
3
6% = € 0.47
€ 7.92
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 8.39 / piece)
€ 8.39
plus VAT.
Only 9 Piece(s) available
Highlights & Details
Safety panel jack DI SEB 9424 au/BL
- 32 A Blue
Technical specifications
- Colour: Blue
- Diameter of socket 4 mm
- Connection 1: Socket
- Connection 2: Screws
- Design 4 mm-Safety program
- Contact parts: Gold-plated
- PA 6.6 (polyamide) UL94 - V2
- Mounting hole 12.2 mm
- M4 x 0.7 nuts
- Constant resistance 7 mΩ / 5 mΩ
- Rated voltage 1500V DC 1000V CAT III 600V CAT IV.
- Rated current 32 A
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 45 Ncm
- Tightening torque of M4 nut: 100 Ncm
- Packaging type
Piece
- Product type
Safety socket
- Connector type
straight
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
Socket
Screws
- Factory colour
Blue
- Insulation type
Insulated
- Manufacturer part #
99023253
- Type
DI SEB 9424 Au / BL
- Dim
12.2
- Type
4 mm safety program
- Scoop-proof
Yes
- Jack diameter
4 mm
- Thread type
M4 x 0.7 nuts
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Gold plated
- Dimensions
12.2 mm
- Nominal voltage
1500 V DC
1000 V
600 V
- Temperature range
From -25 °C to +80 °C. °C
- Max. resistance
5 mΩ
Documents & Downloads
Datasheet
Datasheet 3385775 Schützinger DI SEB 9424 Au / BL Safety socket straight Pin diameter: 4 mm Blue 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3385775 Schützinger DI SEB 9424 Au / BL Safety socket straight Pin diameter: 4 mm Blue 1 pc(s) Piece
Information
Information 3385775 Schützinger DI SEB 9424 Au / BL Safety socket straight Pin diameter: 4 mm Blue 1 pc(s) Piece
Description
Solid metal designs and insulated installation. Touch-protected safety sockets for the application up to 1000 V according to EN 61010-031.
Safety sockets for conversion of old 4 mm sockets
Connection for PCB mounting, cable lugs or flat plug connection.
Rating up to 32 A. Nickel plated or gold plated versions.
