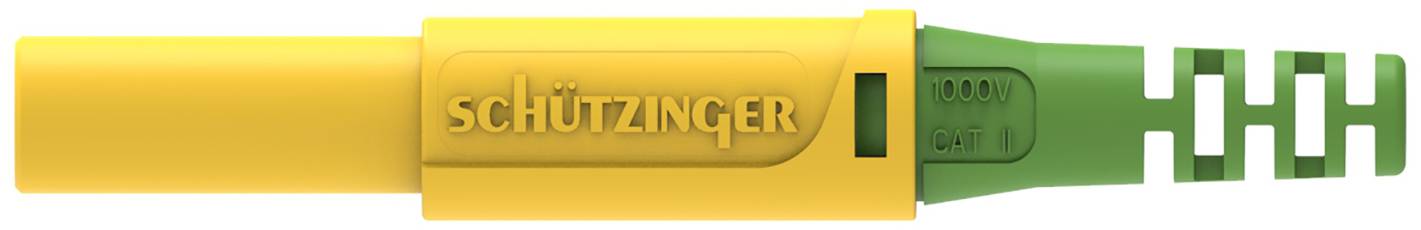

Schützinger DI SFK 30 S Ni / OK / GNGE Spring-loaded safety plug Green-yellow 1 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded safety plug
Connection
Screws
Nominal current
32 A
Nominal current - rounded value
32 A
Factory colour
Green-yellow
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.87
5
6% = € 0.35
€ 5.52
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.87 / piece)
€ 5.87
plus VAT.
14-day return policy included
Highlights & Details
Schützinger DI SFK 30 S Ni/OK/GNGE
- 32 A Green-yellow
Our service for you
Technical specifications
- Sleeve PA 6.6 (polyamide)
- Cross-section of sleeve: Up to 2.5 mm²
- Cable diameter sleeve: Up to 4 mm
- Terminal: screws up to 2.5 mm²
- Sleeve for cable: Up to Ø 4 mm
- Contact resistance mΩ: 3 mΩ
- Operating temperature: -25 °C.
- Operating temperature up to +80 °C.
- Product type
Spring-loaded safety plug
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
Screws
- Factory colour
Green-yellow
- Manufacturer part #
DI SFK 30 S Ni / OK / GNGE
- Type
DI SFK 30 S Ni / OK / GNGE
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Nominal voltage
1000 V
- RoHS-compliant
Yes
