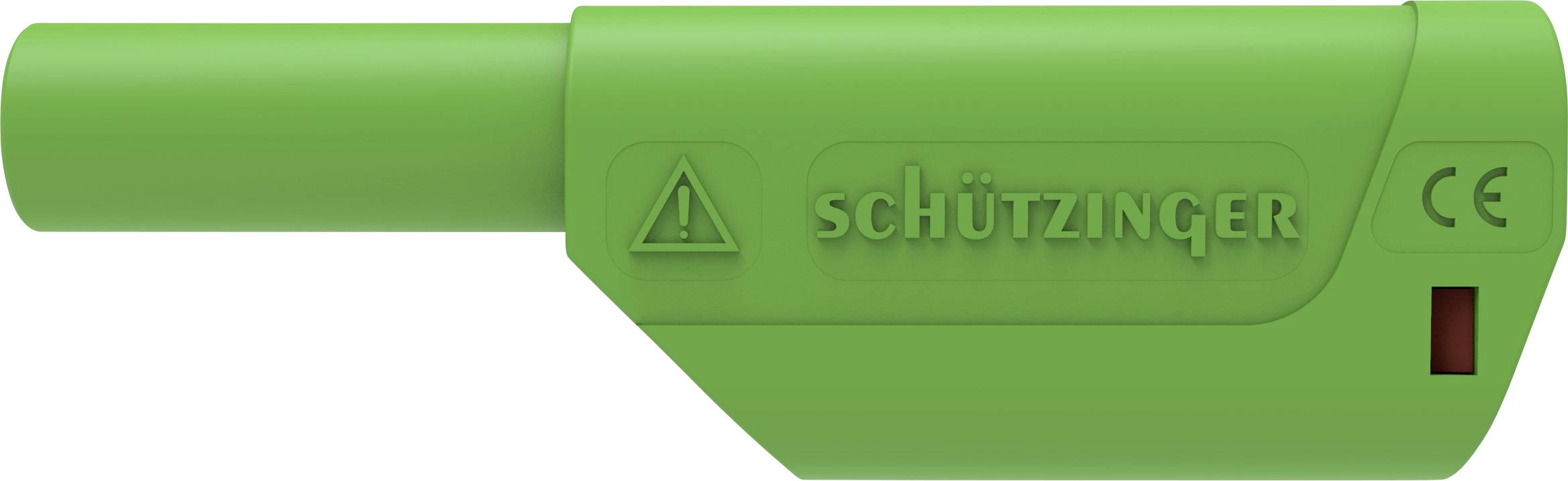

Schützinger DI SFK 8500 L Ni / AS / GN Spring-loaded safety plug straight Pin diameter: 4 mm Green 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Spring-loaded safety plug
Connector type
straight
Pin Ø
4 mm
Connection
Plug
Soldering
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 7.13
5
6% = € 0.43
€ 6.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 7.13 / piece)
€ 7.13
plus VAT.
14-day return policy included
Highlights & Details
Safety spring basket plug DI SFK 8500 L Ni / AS / GN
- 32 A Green
Technical specifications
- Colour: green.
- Diameter of plug 4 mm
- Connection 1: Plug
- Connection 2: Soldering
- Design 4 mm-Safety program
- Contact parts: Nickel-plated
- GRIP SLEEVES PA 6.6 (UL94-V
- For cable cross-section: 2.5 mm²
- For cable diameters: Up to 4 mm
- Connection: Solder up to 2.5 mm²
- Grip sleeve for cable: Up to Ø 4 mm
- Constant resistance 3 mΩ / 2 mΩ
- Nominal voltage 1000 V, CAT II
- Rated current 32 A
- Operating temperature from -25 °C to +80 °C
- Packaging type
Piece
- Product type
Spring-loaded safety plug
- Connector type
straight
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Plug
Soldering
- Factory colour
Green
- Insulation type
Insulated
- Manufacturer part #
99021933
- Type
DI SFK 8500 L Ni / AS / GN
- Dim
(Ø) 4 mm
- Type
4 mm safety program
- Scoop-proof
Yes
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Dimensions
10 mm
- Nominal voltage
1000 V
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
- Material
PA 6.6
- Max. resistance
3 mΩ
Documents & Downloads
Datasheet
Datasheet 3385794 Schützinger DI SFK 8500 L Ni / AS / GN Spring-loaded safety plug straight Pin diameter: 4 mm Green 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3385794 Schützinger DI SFK 8500 L Ni / AS / GN Spring-loaded safety plug straight Pin diameter: 4 mm Green 1 pc(s) Piece
Description
The spring baskets are from high-quality copper beryllium and have high current carrying capacity with minimal transition resistance and low self-heating.
The plug connectors ensure a high contact reliability, are robust and are vibration proof in inserted condition.
Models for low voltages 30 VAC / 60 VDC and contact protected up to 1000 V according to EN 61010-031.
This text is machine translated.
The plug connectors ensure a high contact reliability, are robust and are vibration proof in inserted condition.
Models for low voltages 30 VAC / 60 VDC and contact protected up to 1000 V according to EN 61010-031.
