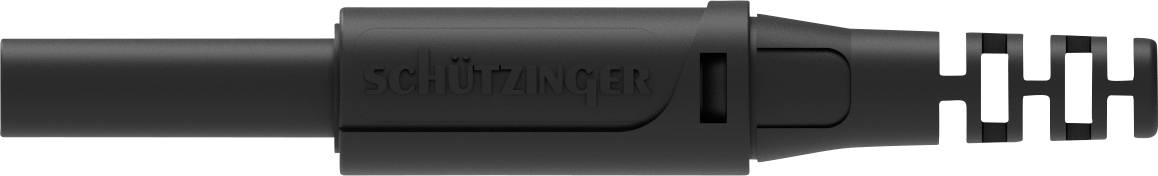

Schützinger DI SKU 30 L Ni / OK / SW Safety jack socket straight Black 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety jack socket
Connector type
straight
Connection
Socket
Soldering
Nominal current
32 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
Highlights & Details
Safety-coupl DI SKU 30 L Ni / OK / BLK
- 32 A Black
Technical specifications
- Colour, black
- Diameter of socket 4 mm
- Connection 1: Socket
- Connection 2: Soldering
- Design 4 mm-Safety program
- Contact parts: Nickel-plated
- Grip sleeves PA 6.6 (polyamide)
- For cable cross-section: 2.5 mm²
- For cable diameters: Up to 4 mm
- Connection: Solder up to 2.5 mm²
- Grip sleeve for cable: Up to Ø 4 mm
- Constant resistance: 3 mΩ
- Nominal voltage 1000 V, CAT II
- Rated current 32 A
- Operating temperature from -25 °C to +80 °C
- Packaging type
Piece
- Product type
Safety jack socket
- Connector type
straight
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Cross section (flexible) (max.)
2.5 mm²
- Connection
Socket
Soldering
- Factory colour
Black
- Insulation type
Insulated
- Manufacturer part #
99020497
- Type
DI SKU 30 L Ni / OK / SW
- Dim
(Ø) 4 mm
- Type
4 mm safety program
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Nominal voltage
1000 V
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
- Material
PA 6.6
- Max. resistance
3 mΩ
Documents & Downloads
Datasheet
Datasheet 3385796 Schützinger DI SKU 30 L Ni / OK / SW Safety jack socket straight Black 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3385796 Schützinger DI SKU 30 L Ni / OK / SW Safety jack socket straight Black 1 pc(s) Piece
Description
In many color variations
Version with nickel-plated or gold-plated surface, load capacity up to 32 A.
