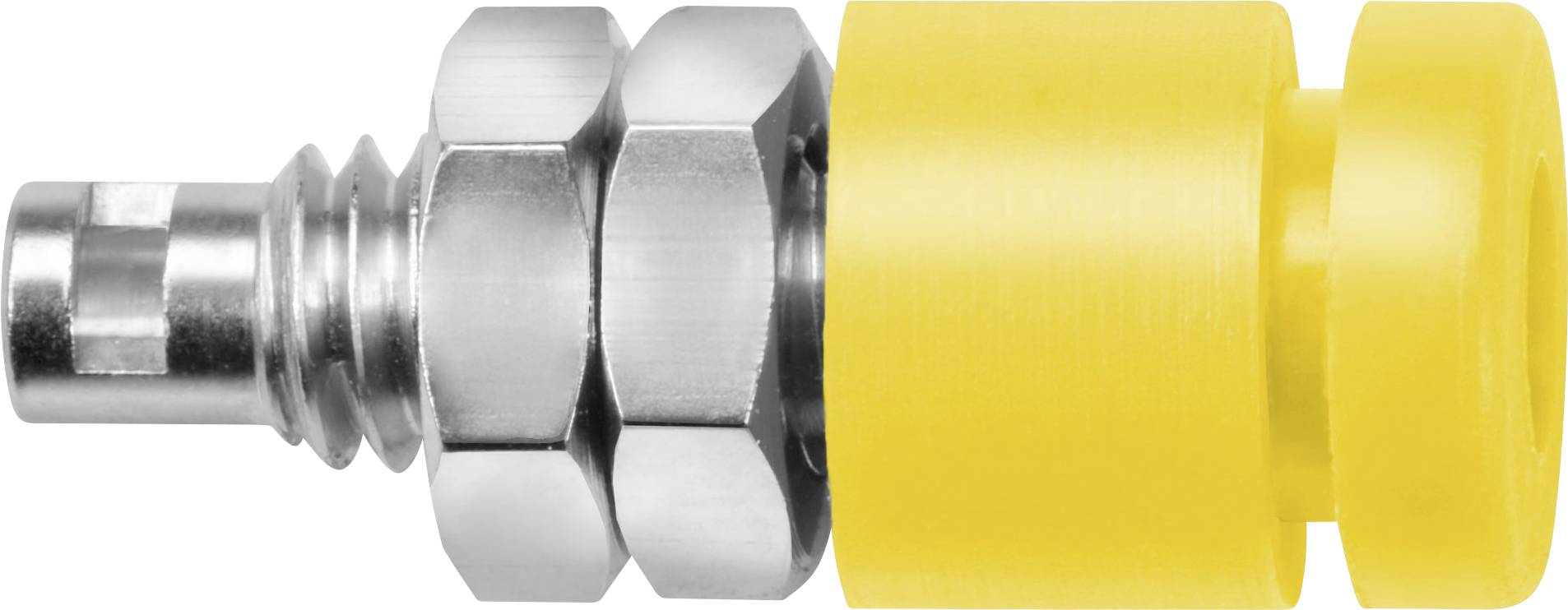

Schützinger IBU 2011 Ni / GE Socket Yellow 1 pc(s) Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Socket
Connection
Soldering
Nominal current
10 A
Nominal current - rounded value
10 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.51
10
7% = € 0.18
€ 2.33
25
10% = € 0.26
€ 2.25
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.51 / piece)
€ 2.51
plus VAT.
14-day return policy included
Highlights & Details
Schützinger IBU 2011 Ni/GE
- 10 A Yellow
Our service for you
Technical specifications
- Terminal: soldering up to 0.75 mm²
- Contact resistance mΩ: 5 mΩ
- Maximum torque fixing nut, Ncm: 60 Ncm
- Operating temperature: -25 °C.
- Operating temperature up to +90 °C.
- Packaging type
Single
- Product type
Socket
- Nominal current
10 A
- Nominal current - rounded value
10 A
- Cross section (flexible) (max.)
0.75 mm²
- Connection
Soldering
- Factory colour
Yellow
- Manufacturer part #
IBU 2011 Ni / GE
- Type
IBU 2011 Ni / GE
- Jack diameter
2 mm
- Content
1 pc(s)
- Insulation material
PA 6.6
- Contact material
Nickel plated
- Nominal voltage
30 V AC
60 V DC
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 2342958 Schützinger IBU 2011 Ni / GE Socket Yellow 1 pc(s) Single
