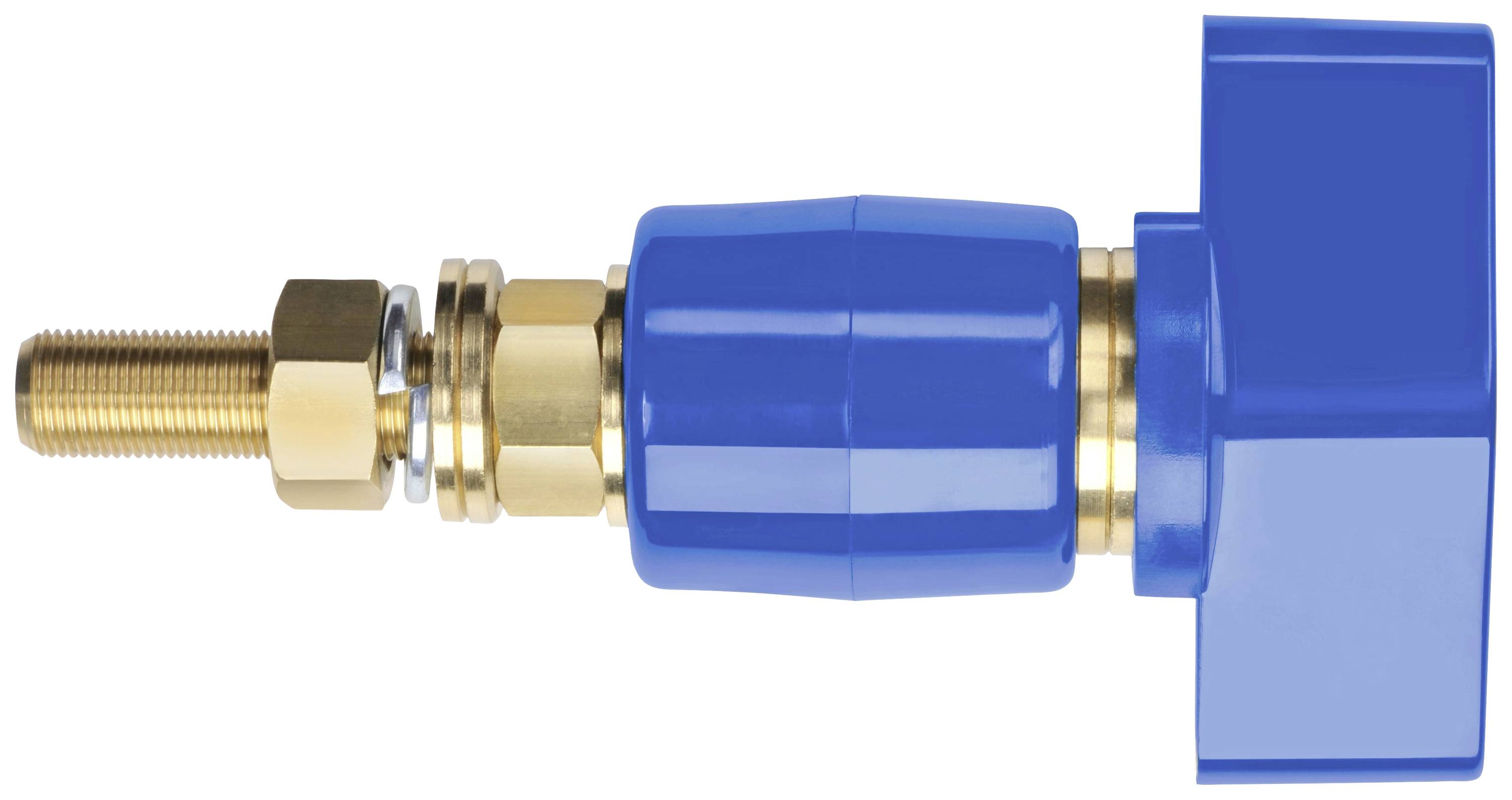

Schützinger Pole terminal Blue 200 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pole terminal
Connection
Screws
Solder tag
Ring terminal
Jack connector
Content
1 pc(s)
Nominal current - rounded value
200 A
Datasheet (PDF)
Number
Total (€ 113.44 / piece)
€ 113.44
plus VAT.
Only 2 Piece(s) available
Highlights & Details
POLE TERMINAL POL 201 L / BL
- Blue
- 200 A
Technical specifications
- Design 4 mm-Program
- Contact parts: brass
- Insulated parts: Polycarbonate
- Colour: Blue
- Connection: M12 x 1; solder lug; cable lug; socket connector
- Constant resistance 4) 0.3 mΩ
- Dimensioning voltage2) 1000 V
- Rated current2) 200 A.
- Operating temperature from -25 °C to +115 °C
- Tightening torque of fixing nut 1500 Ncm
- Packaging type
Piece
- Product type
Pole terminal
- Connection
Screws
Solder tag
Ring terminal
Jack connector
- Factory colour
Blue
- Content
1 pc(s)
- Nominal current
200 A
- Nominal current - rounded value
200 A
- Manufacturer part #
POL 201 L / BL
- Type
POL 201 L / BL
- Insulation material
Polycarbonate
- Nominal voltage
1000 V
- Pin diameter
4 mm
- Temperature range
From -25 °C to +115 °C
- Contact material
Brass
- UKCA
yes
