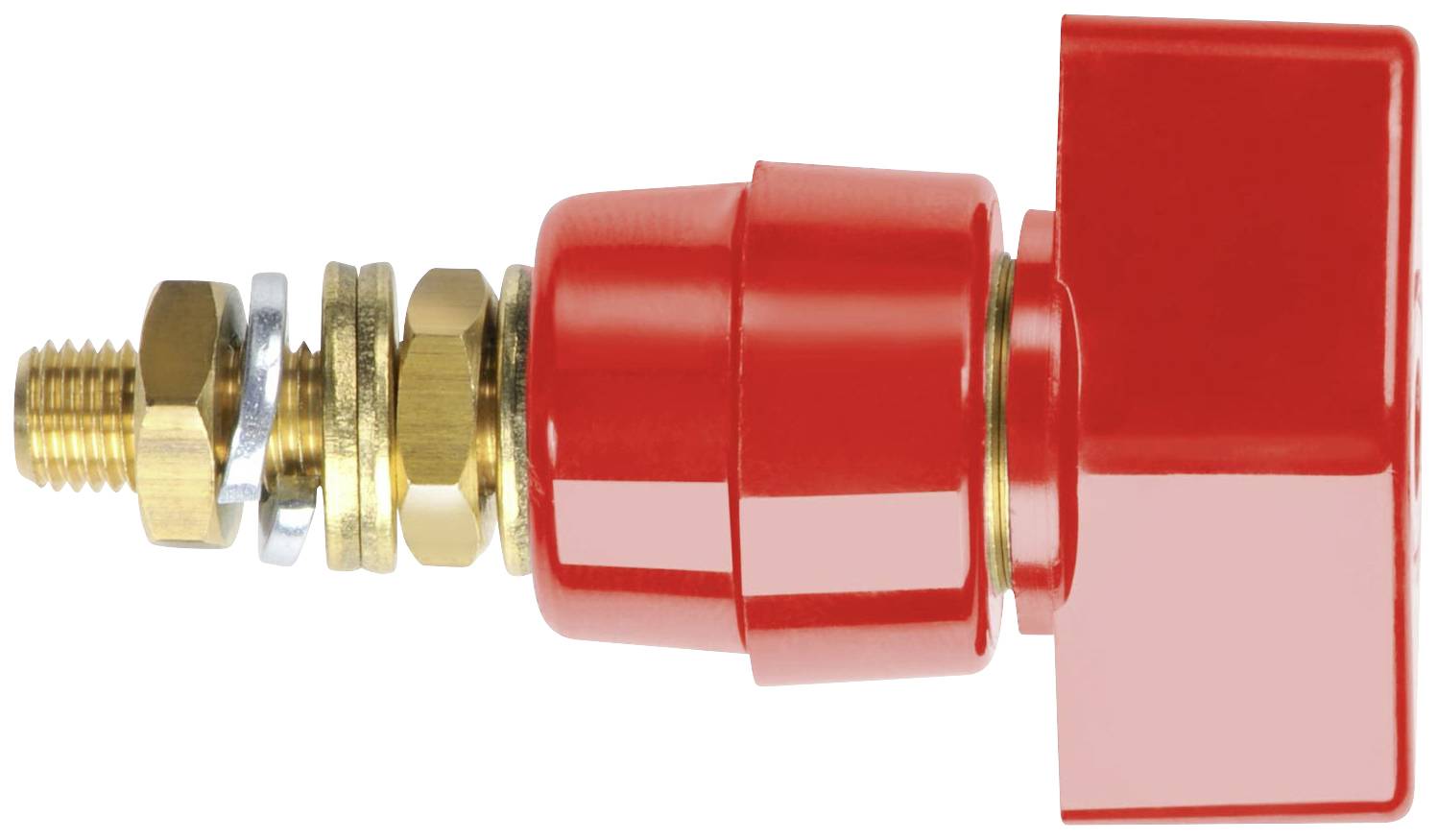

Schützinger Pole terminal Red 63 A 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Pole terminal
Connection
Screws
Solder tag
Ring terminal
Jack connector
Content
1 pc(s)
Nominal current - rounded value
63 A
Datasheet (PDF)
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Highlights & Details
POLE TERMINAL POL 631 L / RT
- Red
- 63 A
Technical specifications
- Design 4 mm-Program
- Contact parts: brass
- Insulated parts: Polycarbonate
- Colour: red.
- Connection: M6 x 0.75;soldering lug;Cable lug;socket
- Constant resistance 4) 0.4 mΩ
- Dimensioning voltage2) 1000 V
- Rated current2) 63 A.
- Operating temperature from -25 °C to +115 °C
- Tightening torque of fixing nut 300 Ncm
- Packaging type
Piece
- Product type
Pole terminal
- Connection
Screws
Solder tag
Ring terminal
Jack connector
- Factory colour
Red
- Content
1 pc(s)
- Nominal current
63 A
- Nominal current - rounded value
63 A
- Manufacturer part #
POL 631 L / RT
- Type
POL 631 L / RT
- Insulation material
Polycarbonate
- Nominal voltage
1000 V
- Pin diameter
4 mm
- Temperature range
From -25 °C to +115 °C
- Contact material
Brass
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2899623 Schützinger Pole terminal Red 63 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2899623 Schützinger Pole terminal Red 63 A 1 pc(s) Piece
