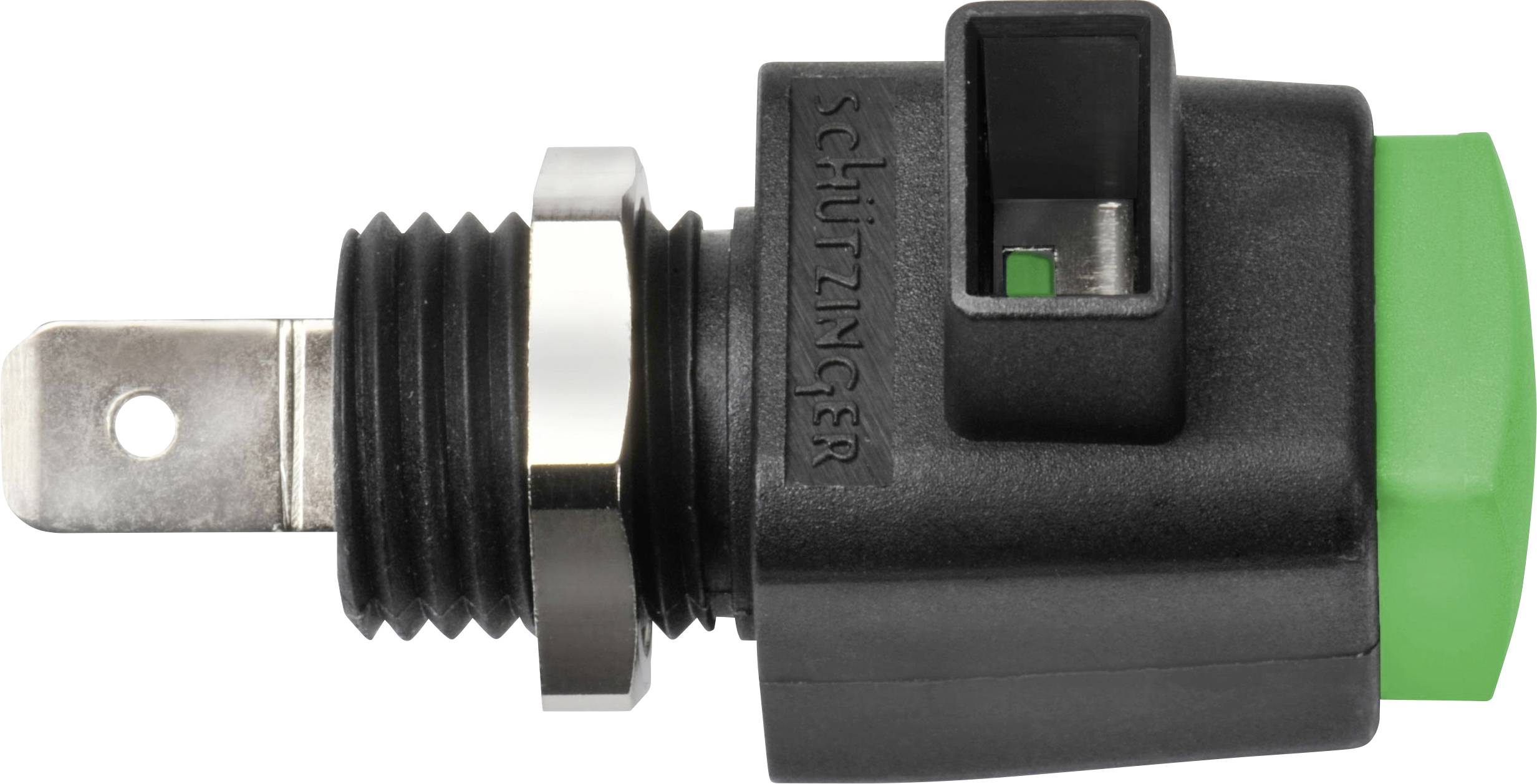

Schützinger Safety quick-fit terminal Green 16 A 1 pc(s) Piece
Part number:
Item no:
Packaging type
Piece
Product type
Safety quick-fit terminal
Connection
Soldering
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
Number
Total (€ 5.03 / piece)
€ 5.03
plus VAT.
14-day return policy included
Highlights & Details
Schützinger ESD 798 / GN - 20 pieces
- Green
- 16 A
Technical specifications
- Contact parts: Nickel-plated
- FSH 6.3 mm x 0.8 mm or soldering
- Spring force 20.0
- Contact resistance 5 mΩ
- Plate thickness of 0.8 mm
- Plate thickness up to 7 mm
- Operating temperature of -25 °C
- Operating temperature up to +90 °C
- Packaging type
Piece
- Product type
Safety quick-fit terminal
- Connection
Soldering
- Factory colour
Green
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Manufacturer part #
ESD 798 / GN
- Type
ESD 798 / GN
- Material (details)
PA 6.6
- Nominal voltage
300 V
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3666179 Schützinger Safety quick-fit terminal Green 16 A 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3666179 Schützinger Safety quick-fit terminal Green 16 A 1 pc(s) Piece
