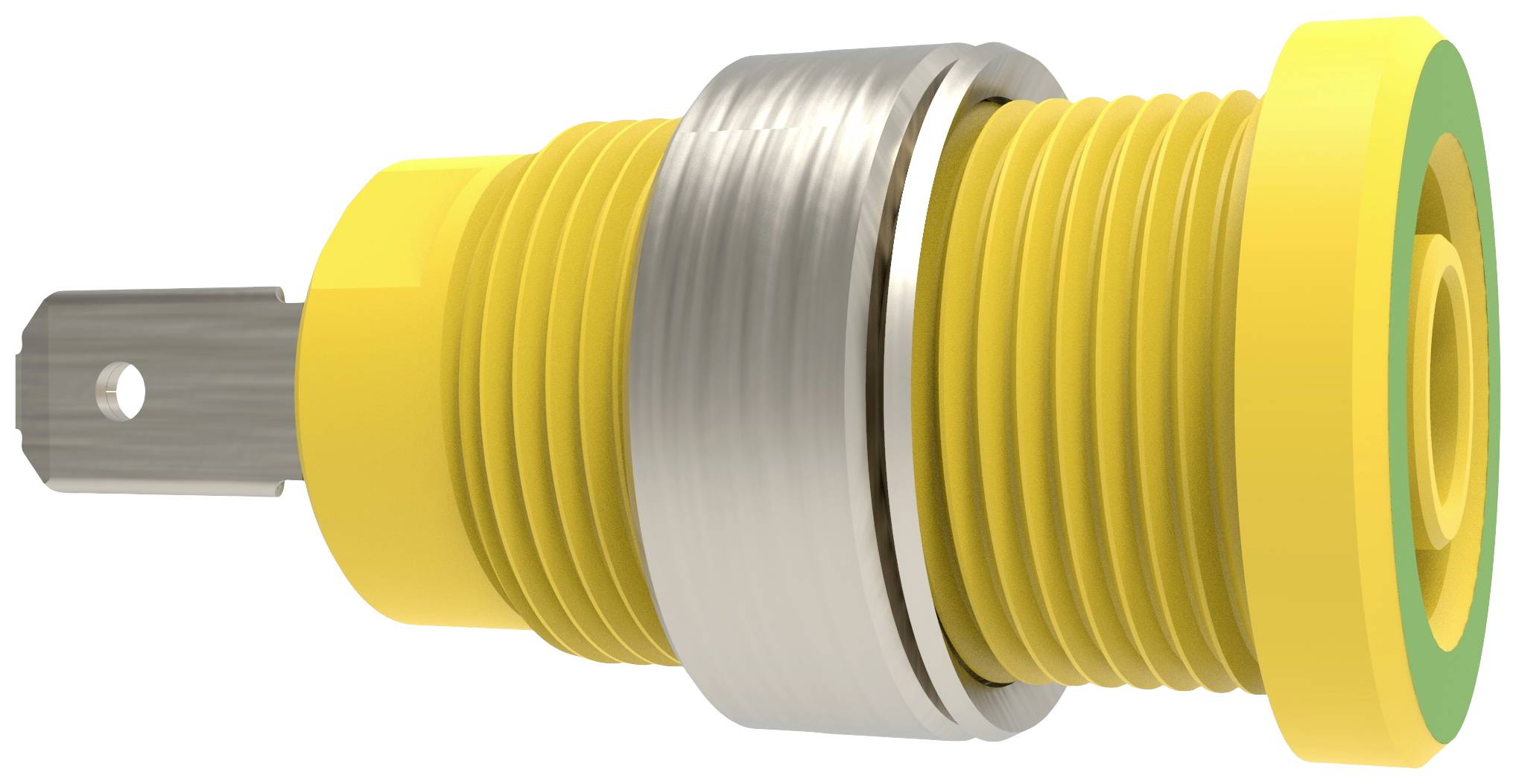

Schützinger Safety socket Green-yellow 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Safety socket
Connection
CEE 7/16 CEE plug
Nominal current
24 A
Nominal current - rounded value
24 A
Datasheet (PDF)
Number
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
14-day return policy included
Highlights & Details
Safety panel socket SEB 7077 Ni/GNGE
- 24 A Green-yellow
Technical specifications
- Design 4 mm-Program
- Contact parts: Nickel-plated
- PA 6.6 (polyamide) UL94 - V2
- Fastening nut (slotted nut) M12 x 0.75
- Colour: Green-yellow
- FSH 4.8 mm x 0.8 mm
- Constant resistance 4) 5 mΩ
- Dimensioning voltage2) 1000 V CAT III.
- Rated current2) 24 A.
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 45 Ncm
- Packaging type
Piece
- Product type
Safety socket
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Connection
CEE 7/16 CEE plug
- Factory colour
Green-yellow
- Manufacturer part #
SEB 7077 Ni / GNGE
- Type
SEB 7077 Ni / GNGE
- Scoop-proof
Yes
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6.6 UL94 - V2
- Contact material
Nickel plated
- Nominal voltage
1000 V
- Temperature range
From -25 °C to +80 °C. °C
