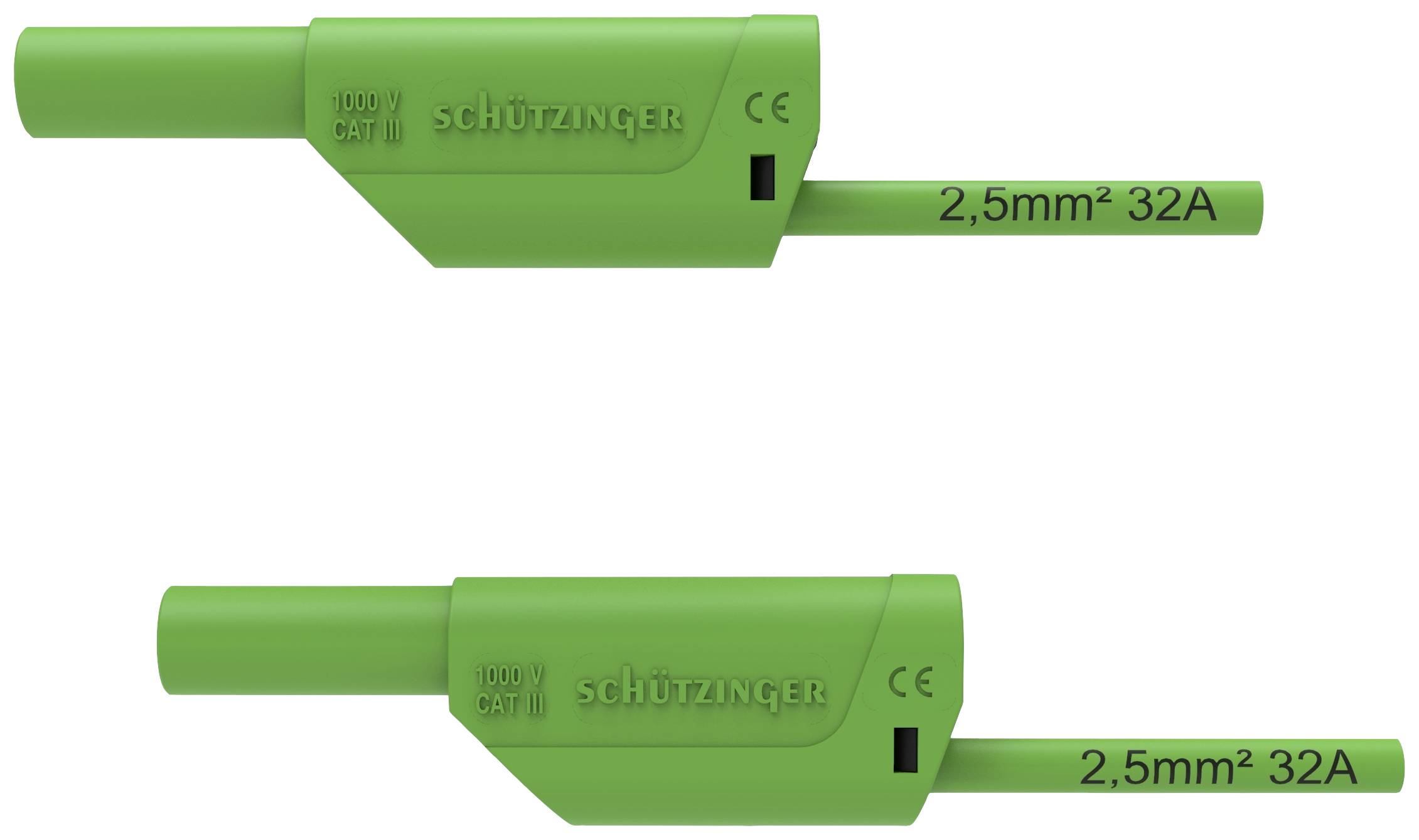

Schützinger Safety test lead 150 cm Green 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 7.55 / piece)
€ 7.55
plus VAT.
Only 2 Piece(s) available
Technical specifications
- Design 4 mm-Program
- Cable: 2.5 mm² PVC double insulated
- Contact parts: Nickel-plated
- PLASTIC SLEEVES: PA 6.6 (UL94-V2)
- Colour: green.
- Length 150 cm
- Constant resistance 4) 25 mΩ
- Dimensioning voltage2) 1000 V CAT III.
- Rated current2) 32 A.
- Operating temperature from -10 °C to +70 °C.
- Product type
Safety test lead
- Cable length
150 cm
- Factory colour
Green
- Material
PVC
- Cable cross section
2.5 mm²
- Nominal voltage
1000 V
- Temperature range
From -10 °C to +70 °C. °C
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Contact material
Nickel plated
- Reading category
CAT III 1000 V
- Type
VSFK 8700 / 2.5 / 150 / GN
- Insulation material
PA 6.6 UL94 - V2
