Buy Schützinger SDK 504 / RT Spring-loaded terminal Red 16 A 1 pc(s) Piece

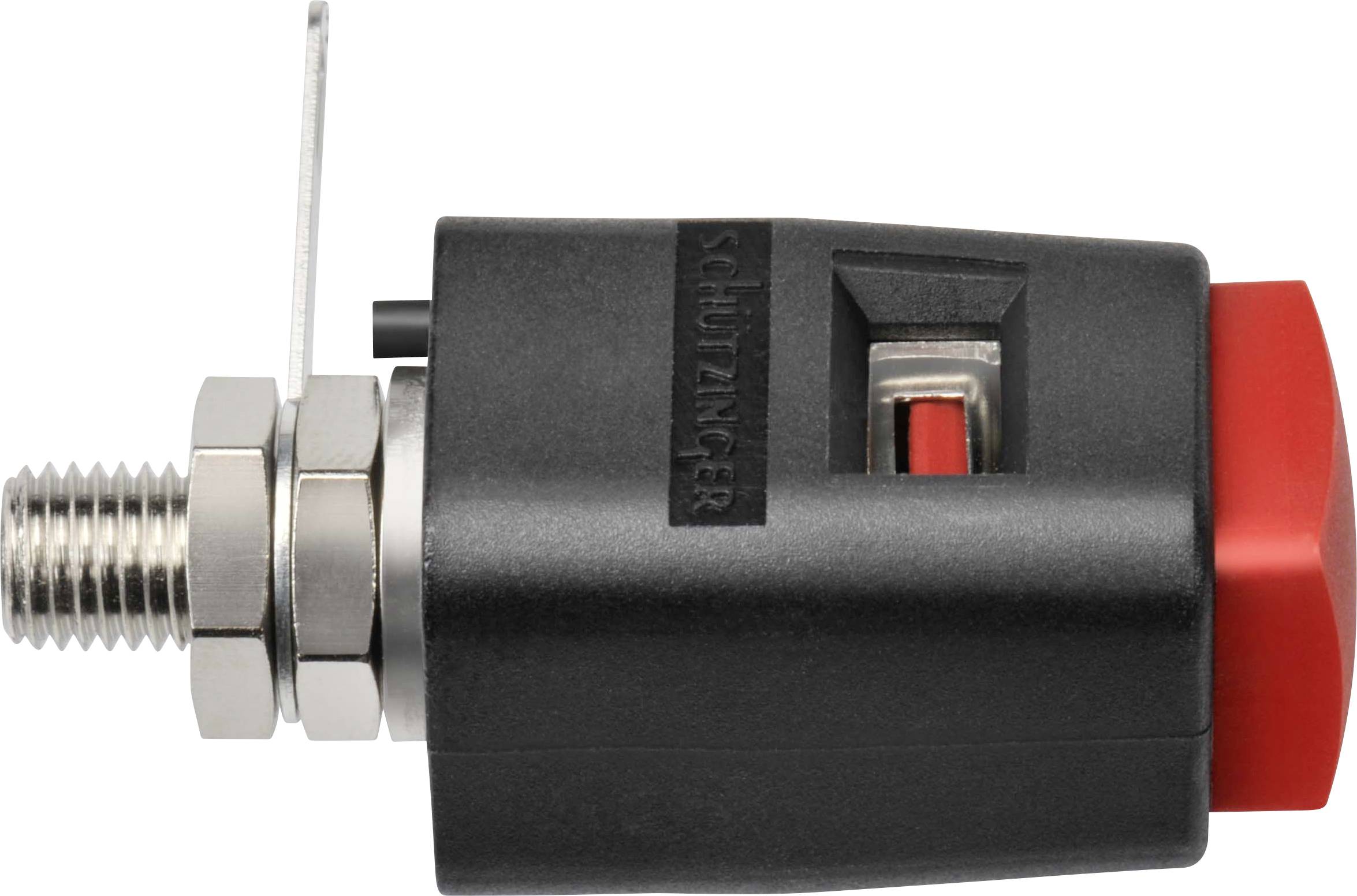

A black push switch with a red button, mounted on a silver threaded connection, is shown from the side.

Image similar

Packaging type

Piece

Nominal current - rounded value

16 A

Content

1 pc(s)

Connection

Soldering

Jack connector

Product type

Spring-loaded terminal

Datasheet (PDF)

Fast track dispatch on Mon, 14 Sep

22 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 10.08 / piece)

€ 10.08

plus VAT.

Report legal concerns

Highlights & Details

Red
16 A

Our service for you

Technical specifications

Contact parts: Nickel-plated
Terminal: Solder lug or cable lug
Spring force 20.0
Contact resistance: 5 mΩ
Maximum torque fixing nut, Ncm: 120 Ncm
Plate thickness of 0.8 mm
Panel thickness up to 5 mm
Operating temperature: -25 °C.
Operating temperature up to +90 °C.

Packaging type: Piece

Nominal current: 16 A

Nominal current - rounded value: 16 A

Manufacturer part #: SDK 504 / RT

Type: SDK 504 / RT

Content: 1 pc(s)

Factory colour: Red

Connection: Soldering
Jack connector

Material (details): PA 6.6

Nominal voltage: 30 V AC
60 V DC

RoHS-compliant: Yes

Product type: Spring-loaded terminal
