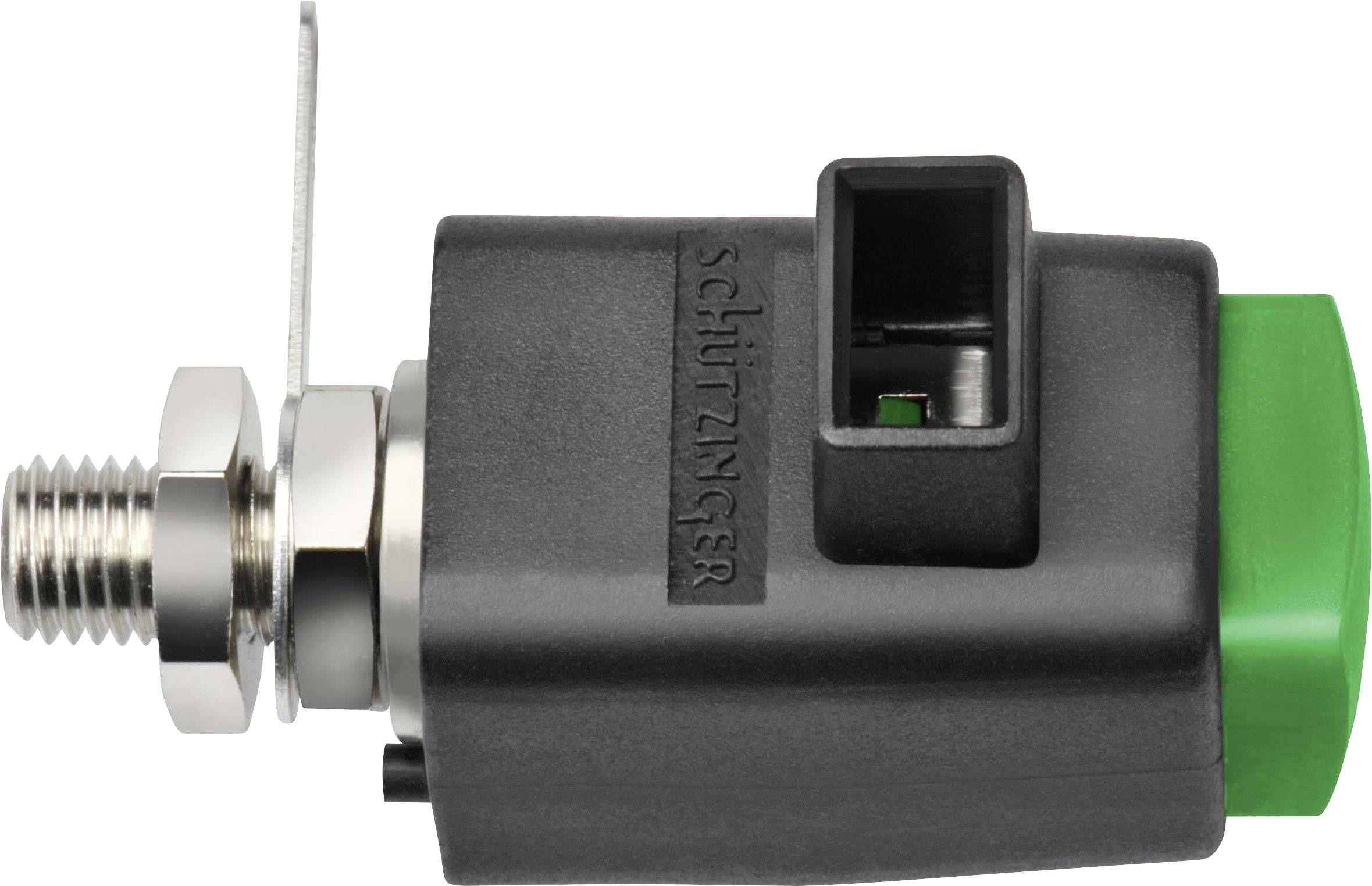

Schützinger SDK 801 / GN Spring-loaded mounting terminal Green 16 A 1 pc(s)
EAN:
Part number:
Item no:
Product type
Spring-loaded mounting terminal
Connection
Solder tag
Screws
Insulation type
Insulated
Content
1 pc(s)
Nominal current - rounded value
16 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 10.08
3
6% = € 0.58
€ 9.50
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 10.08 / piece)
€ 10.08
plus VAT.
14-day return policy included
Highlights & Details
Safety quick-release clips, installation
- Green
- 16 A
Our service for you
Technical specifications
- Mounting hole 6.2 mm, front panel thickness: 0.8-5 mm
- Product type
Spring-loaded mounting terminal
- Connection
Solder tag
Screws
- Factory colour
Green
- Insulation type
Insulated
- Content
1 pc(s)
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Manufacturer part #
SDK 801 / GN
- Type
SDK 801 / GN
- RoHS-compliant
Yes
- Temperature range
-25 °C - +90 °C
- Connection
Spade socket tongue 6.3 mm or soldering
Documents & Downloads
Datasheet
Datasheet 1537934 Schützinger SDK 801 / GN Spring-loaded mounting terminal Green 16 A 1 pc(s)
Description
For non-insulated installation with anti-twist lock and insertion windows 8 x 4 mm.
