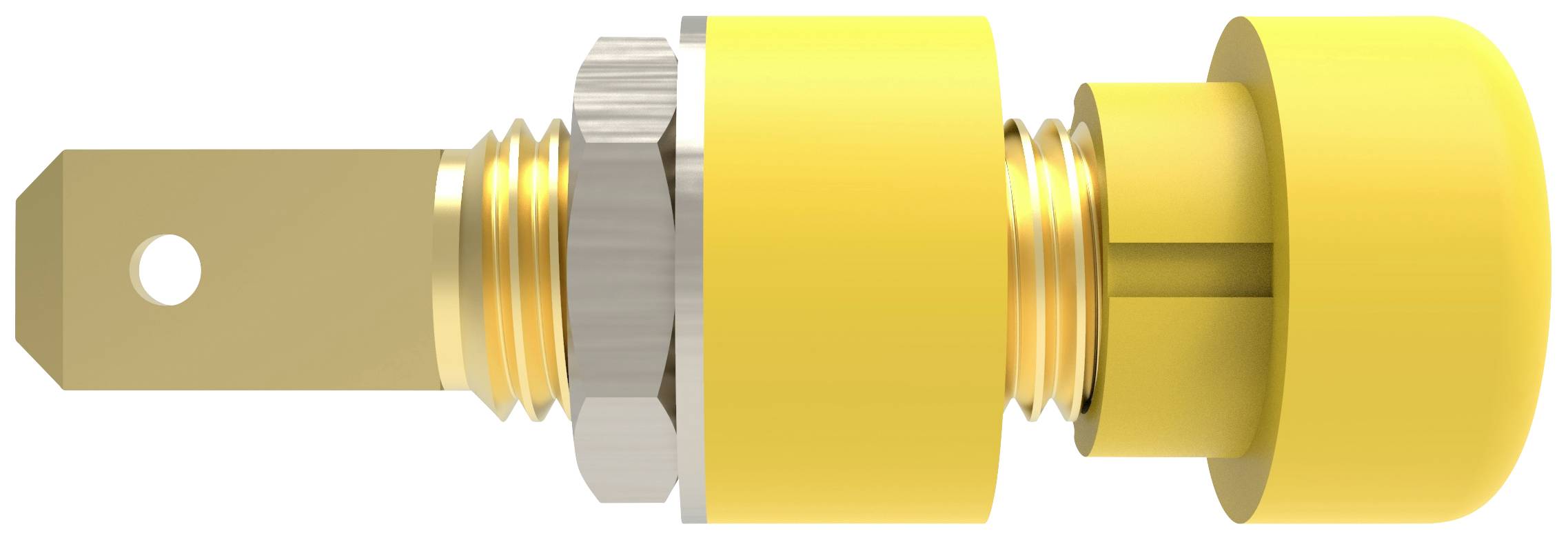

Schützinger Socket Pin diameter: 4 mm Yellow 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Socket
Pin Ø
4 mm
Connection
CEE 7/16 CEE plug
Nominal current
32 A
Datasheet (PDF)
Number
Total (€ 2.09 / piece)
€ 2.09
plus VAT.
Only 7 Piece(s) available
Highlights & Details
Panel socket IBU 5568 Au / GE
- 32 A Yellow
Technical specifications
- Design 4 mm-Program
- Contact parts: Gold-plated
- Insulation parts PA 6 (polyamide)
- Colour: yellow.
- Connection: Cable lug, flat plug tongue 4.8 mm x 0.8 mm
- Constant resistance 4) 3 mΩ
- RATED VOLTAGE2) 30 V/AC;60 V/DC
- Rated current2) 32 A.
- Operating temperature from -25 °C to +80 °C
- Tightening torque of fixing nut 60 Ncm
- Packaging type
Piece
- Product type
Socket
- Pin Ø
4 mm
- Nominal current
32 A
- Nominal current - rounded value
32 A
- Connection
CEE 7/16 CEE plug
- Factory colour
Yellow
- Manufacturer part #
IBU 5568 Au / GE
- Type
IBU 5568 Au / GE
- Dim
(Ø) 4 mm
- Jack diameter
4 mm
- Content
1 pc(s)
- Insulation material
PA 6
- Contact material
Gold plated
- Nominal voltage
30 V AC
60 V DC
- (Ø)
4 mm
- Temperature range
From -25 °C to +80 °C. °C
Documents & Downloads
Datasheet
Datasheet 2899678 Schützinger Socket Pin diameter: 4 mm Yellow 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2899678 Schützinger Socket Pin diameter: 4 mm Yellow 1 pc(s) Piece
